Description

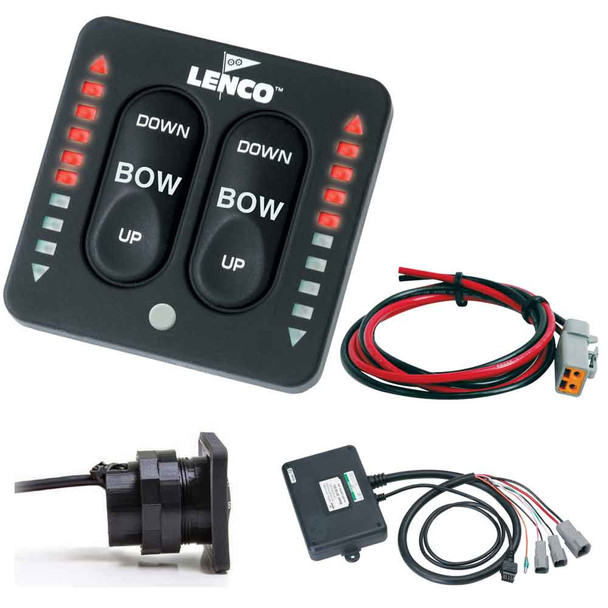

LED Indicator Two-Piece Tactile Switch Kit with Pigtail for Single Actuator Systems
This LED tactile switch kit has a shortened bezel for consoles which require less depth to mount. Functionality is built into the externally mounted control box and must be mounted separately.
LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Features Include
- Simple, quick, Plug Play installation
- Instant response
- Built-in retractor
- Low profile design
- Self-contained, sealed key pad solid state control box with waterproof Plug Play Deutsch connectors
- 36" power pigtail for control box
- 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
- 2.33" clearance required from the back of the key pad's mounting location
- 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
- Photo Eye for optimum viewing in all light conditions
- Backlit key pad for optimum viewing at night
- Self-Check feature
ATTENTION:REPLACEMENT KEY PADS CONTROL BOXES FOR 2016 PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.
Replacement parts are available and are sold separately.
Specifications
- 3 Year Warranty
- System Type:Single Actuator
- Compliance:CE Certified
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine LED Indicator Two-Piece Tactile Switch Kit with Pigtail offers a reliable and user-friendly solution for controlling trim tabs in single actuator systems. Designed with a low-profile bezel, this kit is ideal for consoles where space is limited, requiring less mounting depth. The built-in LED indicators provide real-time visual confirmation of your trim tab positions, ensuring precise control during operation. The backlit keypad enhances visibility in low-light conditions, automatically adjusting its brightness based on ambient light levels thanks to an integrated photo eye. This feature allows for clear operation day or night, making it a valuable addition to any boat control panel. The control box is sealed and self-contained, featuring waterproof Deutsch connectors and a 36-inch power pigtail, enabling straightforward plug-and-play installation. This system's quick response and durable design make it suitable for marine environments, with a 3-year warranty for peace of mind. The kit's compact size, with a 2 1/16-inch hole cut-out and overall keypad dimensions of 2.75 inches square, ensures easy integration into existing dashboards. The system also includes a self-check feature, providing ongoing diagnostics to maintain optimal performance. It complies with CE standards, ensuring safety and reliability. Please note that this kit is incompatible with replacement pads or control boxes designed for models prior to 2016. For continued maintenance, replacement parts are available separately. This product is not suitable for truck freight or oversized shipping and contains chemicals that may be harmful, as noted by California's Proposition 65 warning. Designed for marine use, the Lenco Marine LED Indicator Switch Kit simplifies trim control with advanced features and durable construction, making it a trusted choice for boat owners seeking dependable performance.
Features:
- Simple, quick plug-and-play installation for easy setup
- High-response tactile switching with LED indicators
- Built-in retractor for secure operation
- Low-profile, space-saving bezel design
- Self-contained waterproof control box with Deutsch connectors
- Includes 36-inch power pigtail for flexible wiring
- Compact 2 1/16-inch hole cut-out size with overall keypad dimensions of 2.75 inches
- Requires at least 2.33 inches clearance behind mounting surface
- High-intensity LED indicators display trim tab positions at all times
- Photo eye automatically adjusts backlight brightness for optimal night viewing
- Backlit keypad enhances night operation visibility
- s a self-check diagnostic for ongoing system health monitoring
- Designed specifically for single actuator marine systems
- CE certified for safety and quality assurance
