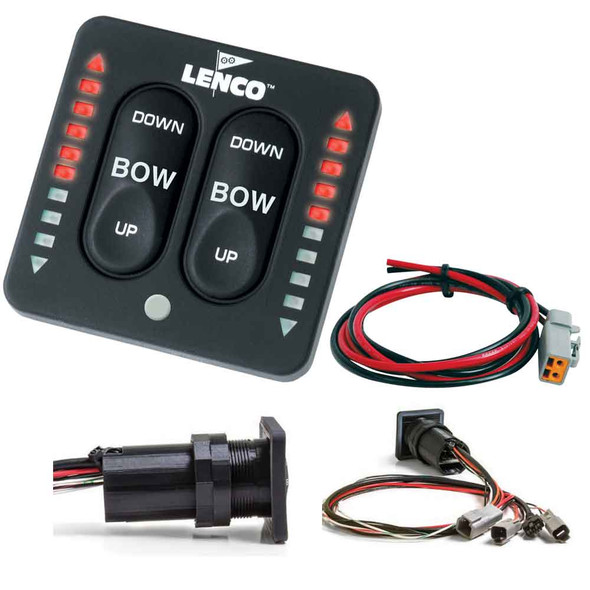

Lenco Marine Part 15169-001 Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator Systems

Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator Systems

Complete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.

Features Include

• Simple, quick, Plug Play installation
• Instant response
• Built-in retractor
• Low profile design
• Self-contained key pad with waterproof Plug Play Deutsch connectors
• Wiring harness length 30" (76.2 cm) from the back of the switch bezel
• 36" power pigtail
• 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
• 4.08" clearance required from the back of the key pad's mounting location

ATTENTION:REPLACEMENT KEY PADS CONTROL BOXES FOR 2016 PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.

Replacement parts are available and are sold separately.

Specifications

• 3 Year Warranty
• System Type: Single Actuator
• Compliance: CE Certified

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your Lenco single actuator trim tab system with the Lenco Marine Part 15169-001 Standard Integrated Tactile Switch Kit featuring a pigtail connection. Designed for seamless plug-and-play installation, this maintenance-free all-in-one switch integrates control box functionality directly into the keypad bezel, streamlining your boat's control system. The low-profile design ensures a sleek appearance while providing instant response to actuator commands, improving overall precision and responsiveness. The built-in retractor adds reliability, and waterproof Deutsch connectors ensure secure and weatherproof connections. The wiring harness extends approximately 30 inches from the back of the switch bezel, with an overall keypad size of 2.75 inches square, requiring about 4.08 inches of clearance behind the mounting surface for proper installation. The 2 1/16-inch hole cut-out size makes this switch compatible with standard panel configurations. This switch kit is CE certified and backed by a three-year warranty, making it a reliable choice for marine applications. Please note that replacement key pads or control boxes for models prior to 2016 are not compatible with this kit. For ongoing maintenance or replacement, parts are available separately. This product is designed specifically for single actuator systems, providing an efficient and durable solution for controlling trim tabs on boats. Note that this product may contain chemicals such as DEHP, which are recognized as harmful; please consult the provided safety warning for more details. For any issues or concerns, contact the manufacturer directly, as returns to the point of purchase may not be accepted.

Features:

• Simple, quick, plug-and-play installation for ease of setup

• Instant response for precise control of trim tabs

• Built-in retractor enhances durability and reliability

• Low profile design for a sleek appearance

• Self-contained keypad with waterproof Deutsch connectors ensures weatherproof connections

• Wiring harness length of approximately 30 inches from the switch bezel

• Includes a 36-inch power pigtail for flexible wiring options

• Requires a 2 1/16-inch hole cut-out with a 2.75-inch square keypad size

• Provides approximately 4.08 inches of clearance behind mounting surface

• CE certified and backed by a 3-year warranty for quality assurance
