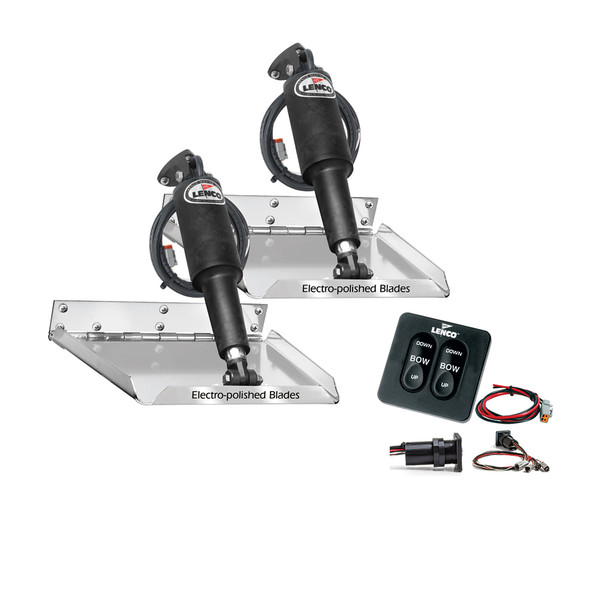

Lenco Marine RT12X12 Standard Performance Trim Tab Kit with Tactile Switch and Electro-Polished Stainless Steel Blades

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

  2 actuators with 6' Lead & Deutsch Plugs

  • 2 12 Gauge SS Electro Polished trim tab planes

  • 2 20' Actuator Extension Wiring Harness

  • 2 Upper Mounting Bracket with Gland Seal

  • 2 Lower Mounting Bracket

  • All Necessary stainless steel mounting Hardware

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance with the Lenco Marine RT12X12 Standard Performance Trim Tab Kit, designed for reliable, aggressive boating in challenging conditions. Crafted from durable 12-gauge 304 stainless steel, these trim tabs feature electro-polished blades that resist corrosion and maintain their sleek appearance over time. The actuator employs 5/16 stainless steel through bolts and offers precise, controllable response, ensuring optimal control at high speeds. Built for toughness, the actuator is fully sealed, maintenance-free, and equipped with a high-impact, ultraviolet-resistant nylon case, making it suitable for submersion and harsh marine environments. This kit is ideal for boaters seeking robust, high-performance trim tabs capable of handling rough seas and high-speed operation.

Features:

• All stainless steel construction with no dissimilar metals for longevity and corrosion resistance

• Electro-polished blades for long-lasting good looks and reduced drag

• Actuator with instant response for precise control

• Fully submersible, sealed for life, maintenance-free operation

• High-impact, ultraviolet-resistant nylon case ensures durability

• Standard solid state tactile switch kit with built-in retractor feature for easy control

• Plug & Play, waterproof control box with sealed connectors for quick installation

• Low profile design for unobtrusive mounting

• Includes 36-inch power pigtail for seamless wiring

• Compact 2.75-inch overall control box size with a 2-inch hole cut-out
