Description

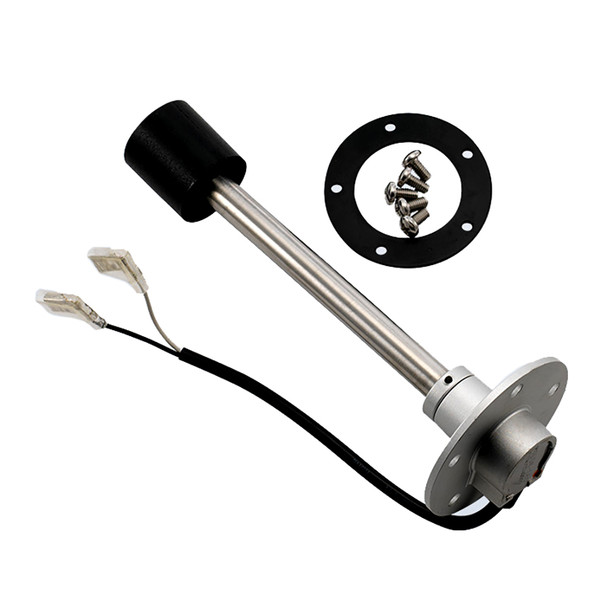

Reed Switch Fuel Sender - 150 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 6" (150mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number: 226-615) is a innovative solution designed for precise fuel measurement in tanks with a depth of approximately 6 inches. Unlike traditional float arm systems that rely on resistance cards and rotating components, this floatless fuel sender features a tubular design that minimizes fuel slosh impact and prevents erratic gauge readings. Its top-mounted configuration includes a standard SAE 5-hole mounting flange, making installation straightforward and compatible with most aftermarket marine and automotive fuel gauges. The stainless steel construction ensures durability and resistance to harsh environments, while the ethanol-resistant Viton gasket provides a reliable seal against fuel vapors and leaks. The sender's insulated 1/4-inch spade connectors facilitate secure electrical connections, and the grounded floating design ensures accurate readings across various tank configurations. This product is an ideal upgrade for applications where conventional swing-arm senders may not fit or where long-term reliability is essential. The VDO fuel sender operates within a 240-33 Ohm range, compatible with most standard fuel gauge systems, providing consistent and dependable fuel level readings. Please note, this product contains chemicals including lead, which may pose health risks; consult the provided safety warnings for proper handling and disposal. Built to withstand the demands of marine and automotive environments, the VDO Reed Switch Fuel Sender offers a maintenance-free, long-lasting solution for fuel measurement needs.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for reliable sealing
- Operates within a 240-33 Ohm range for compatibility with standard gauges
- Designed for tanks with approximately 6 inches (150 mm) depth
- Insulated 1/4-inch spade connectors for secure electrical connections
- Standard SAE 5-hole mounting flange for easy installation
- Compatible with most standard marine and automotive fuel gauges
- Grounded floating design for accurate fuel level readings
- Floatless tubular design minimizes fuel slosh effects and wear
