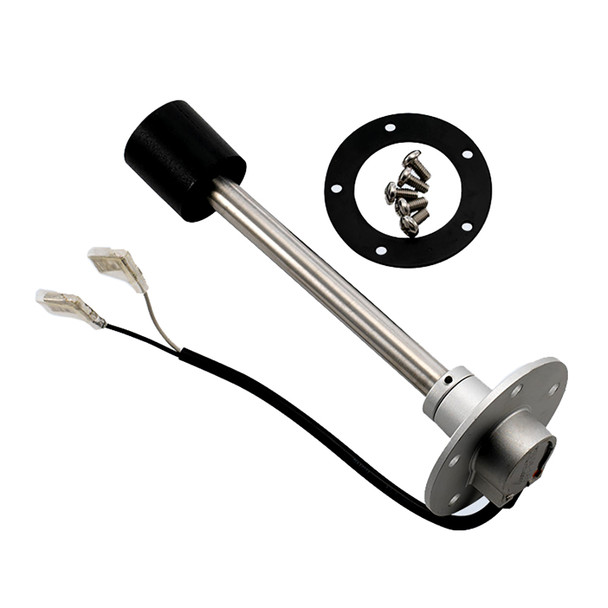

Reed Switch Fuel Sender - 800 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 31.5" (800mm)
- Insulated 1/4" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-680) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 31.5 inches deep. Unlike traditional float-based sensors, this floatless design eliminates side-to-side motion and wear points, providing consistent and accurate readings. Its tubular construction acts as a dampener, reducing gauge pointer fluctuations caused by fuel slosh, making it ideal for applications where space constraints prevent the use of conventional swing arm sensors. The top-mounted sensor features a standard SAE 5-hole mounting flange, complete with a neoprene gasket and mounting hardware for straightforward installation. Crafted from stainless steel and equipped with ethanol-resistant Viton gaskets, this fuel sender is designed to withstand harsh marine and automotive environments while ensuring durability and long-lasting performance.
Features:
- Stainless steel construction for corrosion resistance
- Ethanol resistant Viton gasket for durability in fuel environments
- 240-33 Ohm resistance range for accurate fuel level readings
- Suitable for tanks with a depth of 31.5 inches (800 mm)
- Insulated 1/4" spade connectors for secure electrical connections
- Standard 5-hole mounting flange for easy installation
- Compatible with most standard marine and automotive fuel gauges
- Ground floating design for reliable operation
- Connection utilizes insulated 1/4" spade terminal
