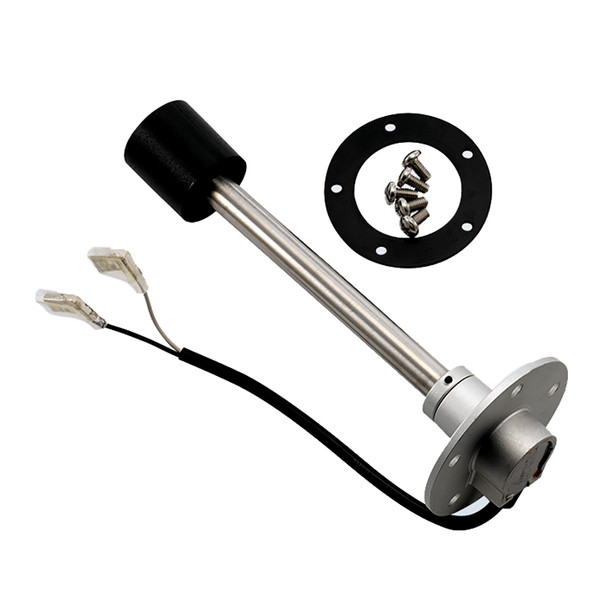

Reed Switch Fuel Sender - 230 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 9.2" (230mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-623) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 9.2 inches deep. Unlike traditional float arm sensors, this design employs a floatless, tubular construction that acts as a dampener, preventing the gauge pointer from erratic movements caused by fuel slosh. Its top-mounted configuration utilizes the standard SAE 5-hole mounting flange, making installation straightforward and compatible with most aftermarket marine and automotive fuel gauges. The inclusion of a neoprene gasket and mounting hardware simplifies setup and ensures a secure seal against fuel vapors and leaks. Constructed from stainless steel, the sender provides durability and resistance to corrosion, making it suitable for a variety of fuel types, including ethanol-blended fuels. The sensor's resistance range of 240-33 Ohms ensures accurate readings across different gauge systems. Insulated 1/4-inch spade connectors facilitate secure electrical connections, and the device's ground-floating design helps maintain consistent operation. This product is ideal for applications where space constraints prevent the use of traditional swing-arm sensors, or where a more stable and durable fuel level measurement is desired. Please note that this product contains chemicals including lead, which may pose health risks; proper handling and disposal are recommended. The VDO Reed Switch Fuel Sender provides a long-lasting, precise, and hassle-free option for fuel level monitoring in both marine and automotive contexts.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for reliable sealing with ethanol-blended fuels
- Resistance range of 240-33 Ohms for compatibility with most fuel gauges
- Fits tanks with a depth of approximately 9.2 inches (230 mm)
- Insulated 1/4-inch spade electrical connectors for secure wiring
- Standard 5-hole mounting flange for easy installation
- Compatible with most standard marine and automotive fuel gauges
- Ground-floating design ensures stable operation
- Floatless tubular design eliminates side-to-side motion and wear
