Description

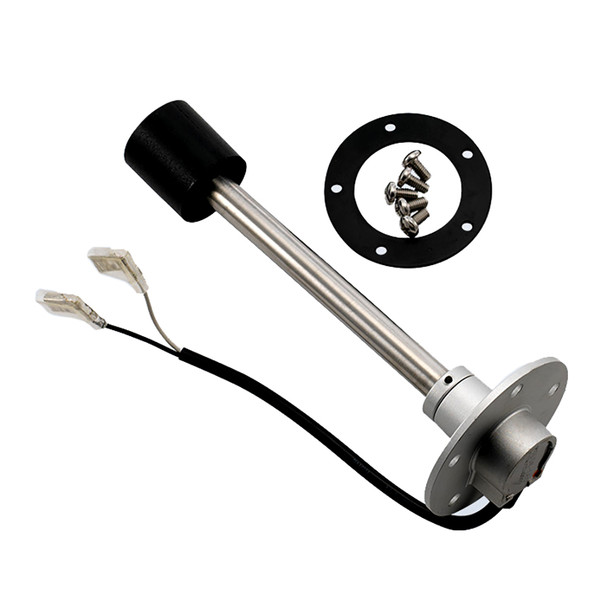

Reed Switch Fuel Sender - 180mm
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 7.2" (180mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number: 226-618) offers a reliable and maintenance-free solution for measuring fuel levels in various tanks. Designed to fit tanks with a depth of approximately 7.2 inches, this sender uses a innovative floatless tubular design that eliminates side-to-side motion and prevents erratic pointer movements common with traditional swing-arm senders. Its stainless steel construction ensures durability and resistance to harsh marine or automotive environments, making it suitable for long-term use. The unit features a resistance range of 240-33 Ohms, compatible with most standard marine and automotive fuel gauges, providing accurate readings essential for safe and efficient operation. The top-mounted configuration includes an SAE 5-hole mounting flange, complete with neoprene gasket and mounting hardware, simplifying installation and ensuring a secure fit. The device's ethanol-resistant Viton gasket further enhances its resilience against fuel additives and environmental factors. Featuring insulated 1/4-inch spade connectors, the VDO Fuel Sender ensures a solid electrical connection and ease of wiring. This product is designed to operate as a floating ground, making it suitable for a wide range of fuel tank setups. Ideal for applications where space constraints prevent the use of conventional swing-arm senders, this fuel sender provides consistent performance even in challenging conditions. Please note that this product contains chemicals including lead, which are known to cause health issues, and proper handling is recommended. Sold individually, the VDO Reed Switch Fuel Sender is a dependable choice for marine and automotive fuel level measurement needs, combining innovative design with robust materials for lasting performance.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol resistant Viton gasket for enhanced chemical compatibility
- 240-33 Ohm resistance range compatible with standard gauges
- Fits tanks with approximately 7.2 inches depth
- Insulated 1/4-inch spade connectors for secure wiring
- Standard SAE 5-hole mounting flange for easy installation
- Designed to work with most standard marine fuel gauges
- Grounding through floating design for reliable operation
- Top-mounted installation suitable for space-constrained tanks
