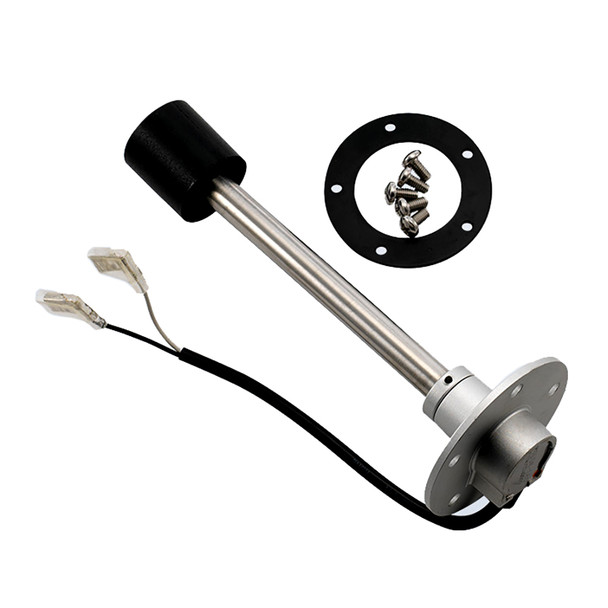

Reed Switch Fuel Sender - 300 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 11.8" (300mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number: 226-630) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 12 inches deep. Unlike traditional float arm sensors that can be prone to erratic readings and wear over time, this innovative design features a floatless, tubular construction that eliminates side-to-side motion and moving parts, significantly enhancing durability and accuracy. Its stainless steel body ensures resistance to corrosion, making it well-suited for both marine and automotive environments where exposure to fuel and moisture is common. The sensor is top-mounted and compatible with standard SAE 5-hole mounting flanges, including a neoprene gasket and mounting hardware for straightforward installation.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for reliable sealing in fuel environments
- Resistance range from 240 to 33 Ohms for compatibility with most fuel gauges
- Designed for tanks with a depth of approximately 12 inches (300 mm)
- Insulated 1/4-inch spade connectors for secure electrical connections
- Standard 5-hole mounting flange for easy installation
- Compatible with most standard marine and automotive fuel gauges
- Ground float design for accurate fuel level readings
- Connection utilizes insulated 1/4-inch spade terminals
