Description

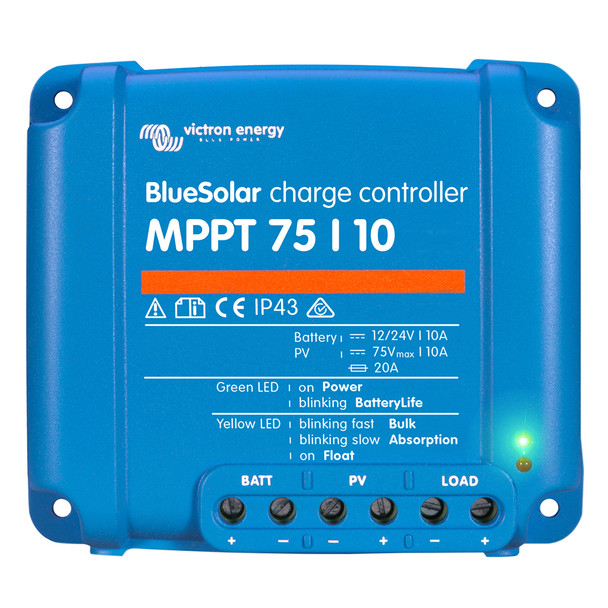

BlueSolar MPPT Charge Controller - 75V - 10AMP
Features:
- Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
- Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
- Programmable battery charge algorithm See the software section on our website for details
- Day/night timing and light dimming option See the software section on our website for details
- Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Victron Energy BlueSolar MPPT Charge Controller with part number SCC010010050R offers efficient and intelligent solar energy management for your off-grid or backup power systems. Designed with advanced Maximum Power Point Tracking (MPPT) technology, this controller ensures optimal energy harvest even under fluctuating light conditions, such as cloudy skies, improving energy collection by up to 30% compared to traditional PWM controllers and by up to 10% compared to slower MPPT models. Its rapid MPPT response maximizes your solar system's efficiency, making it ideal for diverse environmental conditions. The controller features a load output that prevents over-discharge by disconnecting loads at a pre-set voltage, safeguarding your battery’s lifespan. Additionally, it supports an intelligent battery management algorithm called Battery Life, which monitors the state of charge and adjusts load disconnect levels to maintain full recharge cycles, thereby prolonging battery life, especially for lead-acid types. The device is programmable with customizable charge algorithms and offers options for day/night timing and light dimming, accessible via software tools available on the manufacturer's website. Connectivity options include real-time data and history display through the Color Control GX or other GX devices, and Bluetooth-enabled control with a VE.Direct Bluetooth Smart dongle for remote monitoring via smartphones or compatible devices. The controller is UL approved, ensuring compliance with safety standards, and includes comprehensive warranty coverage. Please note that this product may contain chemicals known to cause reproductive harm in California, and proper handling is recommended. For support, repairs, or returns, contact your authorized dealer to ensure proper service and assistance. Designed for reliable solar power management, the Victron Energy BlueSolar MPPT Controller is a robust solution for enhancing your renewable energy setup.
Features:
- Ultra-fast MPPT technology: Improves energy harvest by up to 30% in fluctuating light conditions
- Load output with over-discharge protection: Disconnects loads at preset voltage to extend battery life
- Intelligent Battery Life management: Monitors and adjusts charge/discharge cycles to maximize battery lifespan
- Programmable charge algorithms: Customizable settings for optimal performance based on system needs
- Connectivity options: Real-time data display via Color Control GX and Bluetooth monitoring with VE.Direct dongle
