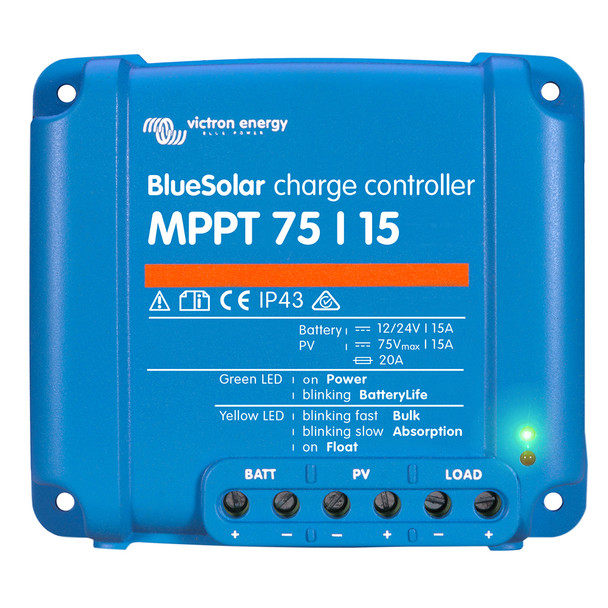

Victron Energy BlueSolar MPPT Charge Controller 75V 15A - Efficient Solar Power Management

BlueSolar MPPT Charge Controller - 75V - 15AMP

Features:

• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Programming, real-time data and history display options - Color Control GX or other GX devices: see the Venus documents on our website. - A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy BlueSolar MPPT Charge Controller model SCC010015050R is designed to optimize your solar energy system with advanced features. Featuring ultra-fast Maximum Power Point Tracking (MPPT), it ensures maximum energy harvest, especially under variable weather conditions such as cloud cover, improving efficiency by up to 30% over traditional PWM controllers and up to 10% over slower MPPT models. This rapid tracking capability guarantees your system captures more solar power, reducing energy waste and enhancing overall system performance.

The controller includes a dedicated load output that prevents battery over-discharge by disconnecting loads once a preset voltage is reached. This load management feature protects your batteries and can be configured for intelligent battery management, extending battery lifespan by adjusting the discharge levels based on the battery's state of charge. The load output is short circuit proof, and in some setups, loads like inverters can be connected directly to the battery, with remote control integrated via a compatible interface cable.

Battery longevity is further enhanced by Victron’s innovative Battery Life algorithm, which monitors and modulates the load disconnect levels to ensure full recharging of lead-acid batteries at least once a week, even when the system cannot fully recharge in a single day. This prevents the common cycle of partial recharges that can rapidly deteriorate batteries. The controller also offers programmable charge algorithms, day/night timing, and light dimming options, providing flexible system customization.

For comprehensive system monitoring and control, the BlueSolar MPPT controller supports real-time data display and history logging through the Color Control GX or other GX devices, as well as Bluetooth-enabled devices using the VE.Direct Bluetooth Smart dongle. This connectivity allows users to manage their solar setup remotely and optimize performance with detailed insights. With UL approval, this controller meets rigorous safety standards, making it suitable for a broad range of solar applications, from residential to commercial projects.

Note that this product may contain chemicals known to cause reproductive harm under California law. For detailed warranty and support information, please refer to the provided links. Designed for reliable, efficient solar power management, the Victron Energy BlueSolar MPPT Charge Controller is a vital component for maximizing your renewable energy investment.

Features:

• Ultra-fast MPPT tracking improves energy harvest by up to 30% over PWM controllers

• Load output prevents battery over-discharge with configurable voltage disconnect

• Intelligent Battery Life algorithm extends battery lifespan by ensuring regular full recharges

• Programmable charge algorithms and light dimming options for system customization

• Supports real-time data display and remote management via Bluetooth and GX devices
