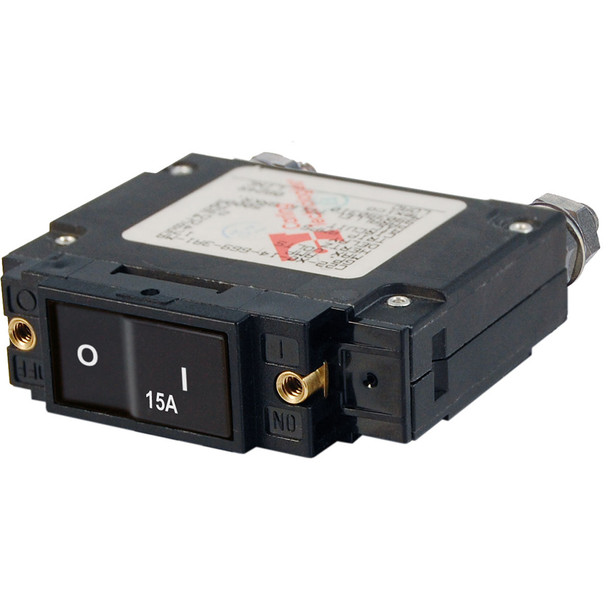

Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker - Single Pole 15 Amp

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 15A AC / 15A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker is a reliable single pole device designed to provide overcurrent protection for marine applications. Featuring a flush-mounted rocker actuator, it ensures the "ON" position is secure, reducing the risk of accidental switching during operation. The rocker actuator's color indication clearly shows when the breaker is in the "OFF" position, allowing for quick visual status checks. This circuit breaker is well-suited for protecting vital systems such as inverters, bow thrusters, and windlasses, combining switching and circuit protection into a single, streamlined device. Its design incorporates a "Trip Free" mechanism, preventing the breaker from being held closed after a trip, enhancing safety and system protection. As an ignition-protected component, it is safe for installation aboard gasoline-powered boats, conforming to marine safety standards. The breaker supports 15A AC and DC loads and operates within a voltage range up to 240V AC and 48V DC, making it versatile for various marine electrical setups. With a magnetic hydraulic trip mechanism, it can handle interrupt capacities of up to 3000A at 120V AC, ensuring robust protection during fault conditions. Designed for durability, it withstands temperatures from -40°C to 85°C and features a stainless steel mounting screw for secure installation. This breaker supports approximately 10,000 switching cycles, ensuring long-term reliability in demanding marine environments. Compact and lightweight, it weighs just over a third of a pound, making it easy to incorporate into your boat's electrical system. The terminal studs are 1/4-20 tin-plated brass, providing secure connections. Proper torque specifications are essential for installation, with 35 in-lb for terminal studs and 6 in-lb for mounting screws. Please note, this product contains chemicals known to the State of California to cause reproductive harm, and appropriate precautions should be taken during handling and installation. The Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker offers a dependable and safe solution for marine electrical protection, combining safety features, durability, and ease of use in a compact form factor.

Features:

• Flush-mounted flat rocker actuator prevents accidental switching

• Color-coded actuator indicates when the breaker is in the "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" design prevents the breaker from being held closed after a trip

• Ignition protected and safe for installation aboard gasoline-powered boats

• Supports 15A AC and DC loads with a maximum voltage of 240V AC / 48V DC

• Magnetic hydraulic trip mechanism offers high interrupt capacity

• Durable construction withstands temperatures from -40°C to 85°C

• Supports approximately 10,000 switching cycles for long-term reliability
