Description
101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

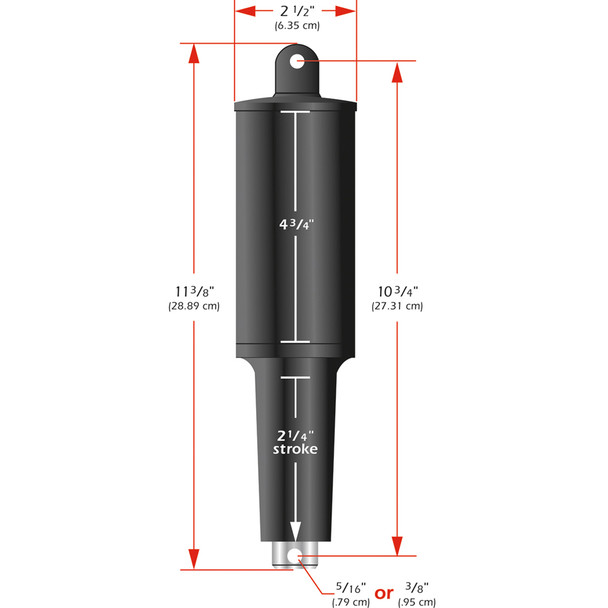

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
- 12 Volt
- 5/16" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine 101XD Extreme Duty Electric Actuator is designed for high-performance applications, providing reliable and powerful operation in marine environments. With a 2-1/4 inch stroke length, this actuator is ideal for use with HD, XD, high-performance, and super-strong tabs, ensuring smooth and precise control. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon with stainless steel tubing, the 101XD offers durability and resistance to harsh weather conditions. Its robust design includes a thicker motor housing wall, molded-in brass thrust bearing, and an improved O-ring seal for consistent sealing and longevity. The integrated wiper seal at the base and the over-molded cable further enhance its water resistance, making it suitable for demanding marine environments. The actuator's advanced features also include a newly implemented Anti Extrusion Ring (AXR) seal stabilization system, a stronger top cap and mounting clevis, and improved pressure-tight torx screws for added durability. The upper mounting bracket with gland seal simplifies installation and ensures a secure fit. The Lenco 101XD is equipped with a reliable ballscrew design that delivers twice the power of typical hydraulic systems, and a high-torque motor capable of pushing up to 500 pounds. Connections utilize waterproof "Plug & Play" Deutsch connectors, eliminating water intrusion risks. The unit operates on 12 volts and includes 5/16 inch mounting hardware and a 6-foot cable for flexible installation options. Perfect for marine applications requiring robust performance, this actuator delivers consistent, powerful, and durable operation to enhance your boat’s functionality. Please note that this product may contain chemicals known to cause reproductive harm and is not returnable to the point of purchase; contact the manufacturer directly for any concerns.
Features:
- Lenco's ballscrew design provides reliable operation and is twice as powerful as typical hydraulic actuators
- High-torque motor easily pushes up to 500 pounds
- Waterproof "Plug & Play" Deutsch connectors prevent water intrusion
- Operates on 12 volts with a 6-foot cable for flexible installation
- Includes 5/16 inch mounting hardware for secure attachment
