Description
101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

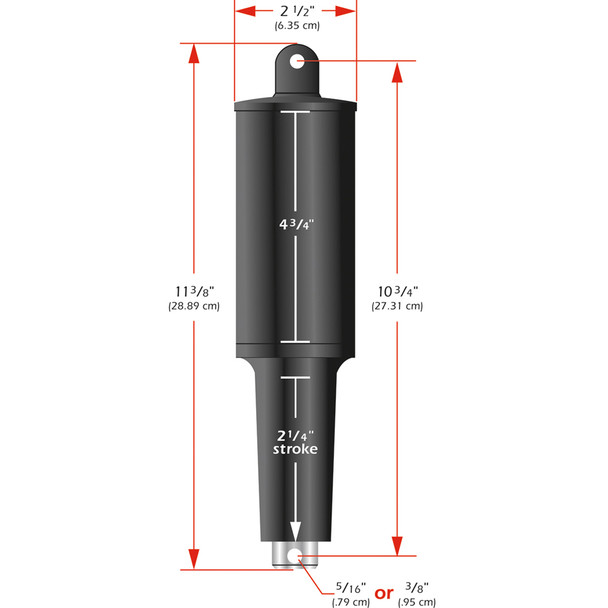

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
- 12 Volt
- 3/8" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine 15056-001 101XD Extreme Duty Electric Actuator is designed for demanding applications, providing reliable performance with a 2 1/4-inch stroke and 12-volt operation. Crafted from high-impact glass fiber filled, ultraviolet-resistant nylon, and reinforced with 316 stainless steel tubing, this actuator offers durability and resistance to harsh environmental conditions. Its robust construction ensures consistent operation in high-performance settings, making it ideal for heavy-duty tabs and marine equipment. The innovative design features include a molded-in brass thrust bearing, a thicker motor housing wall, and improved O-ring seals, all contributing to enhanced longevity and sealing performance. The integrated wiper seal at the base prevents dirt and moisture ingress, while the over-molded cable with gland seal provides a tighter, more reliable connection. The actuator's mounting hardware, measuring 3/8 inches, simplifies installation, and the 6-foot waterproof Deutsch connection cable ensures straightforward wiring with protection against water intrusion. The Lenco 101XD actuator boasts a powerful ballscrew design that delivers twice the force of typical hydraulic systems, easily pushing loads of up to 500 pounds. Its high-torque motor and rugged construction enable dependable operation in marine and industrial environments. The actuator's features include a new Anti Extrusion Ring (AXR) seal stabilization system, stronger top cap and mounting clevis, and improved pressure-tight torx screws. Compatibility with HD, XD, High Performance, and Super Strong tabs makes it versatile for various applications. The upper mounting bracket with gland seal further enhances sealing and mounting options. Designed with waterproof Deutsch “Plug & Play” connectors, the 101XD eliminates water intrusion risks and simplifies wiring. Please note that this product contains chemicals known to the State of California to cause reproductive harm. For more information, visit P65Warnings.ca.gov. This product is non-returnable to the original point of purchase; please contact the manufacturer directly for any concerns.
Features:
- Lenco's ballscrew design offers more reliable and twice the power compared to typical hydraulic actuators
- High-torque motor easily pushes loads up to 500 pounds
- Waterproof Deutsch 'Plug & Play' connectors prevent water intrusion
- 12 Volt operation provides versatile power compatibility
- Includes 3/8-inch mounting hardware for easy installation
- 6-foot sealed cable ensures reliable electrical connection
