Description
101 XD Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

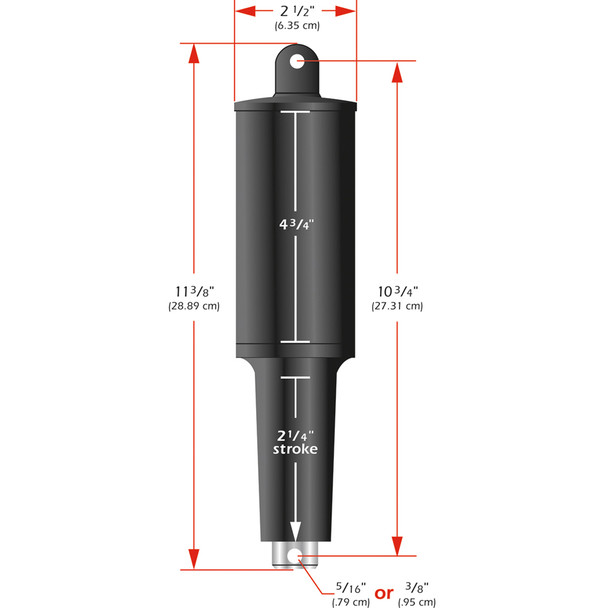

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 3/8" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine 15063-001 101XD Extreme Duty Electric Actuator is designed for high-performance applications requiring reliable and powerful operation. This 24-volt actuator features a 2 1/4 inch stroke length, providing precise control and movement essential for demanding marine and industrial environments. Constructed from high-impact glass fiber filled, ultraviolet-resistant nylon, it offers durability and resistance to harsh weather conditions. The stainless steel tubing ensures strength and corrosion resistance, making it suitable for various outdoor and marine applications. Its overall length measures approximately 11 3/8 inches, making it compatible with many existing mounting configurations. The actuator is equipped with advanced features such as an integrated wiper seal at the base, molded-in brass thrust bearing, and an improved O-ring design to ensure consistent sealing and longevity. The newly implemented Anti Extrusion Ring (AXR) seal stabilization system enhances reliability, while the thicker, stronger motor housing provides additional durability. The unit includes a 6-foot waterproof cable with Deutsch "Plug & Play" connectors, simplifying installation and preventing water intrusion. The upper mounting bracket with gland seal offers secure attachment options. The Lenco ballscrew design delivers twice the power and reliability compared to typical hydraulic systems, capable of pushing loads up to 500 pounds with ease. This actuator’s robust design, combined with a high-torque motor, makes it ideal for heavy-duty applications where strength and dependability are critical. Suitable for use with HD, XD, High Performance, and Super Strong tabs, this actuator offers a dependable solution for marine, industrial, and commercial uses. Please note that this product contains chemicals known to the State of California to cause reproductive harm, and it is recommended to review safety information prior to handling. For any issues or concerns, contact the manufacturer directly as returns to the original point of purchase may not be accepted.
Features:
- Lenco's ballscrew design offers more reliability and twice the power compared to typical hydraulic actuators
- High-torque motor easily pushes loads up to 500 pounds
- Waterproof Deutsch "Plug & Play" connectors prevent water intrusion
- 24-volt power supply for efficient operation
- Includes 3/8-inch mounting hardware for versatile installation
- 6-foot durable cable for flexible setup
