Description
101 Actuator- 24 Volt- 2-1/4 Stroke with Mounting Hardware

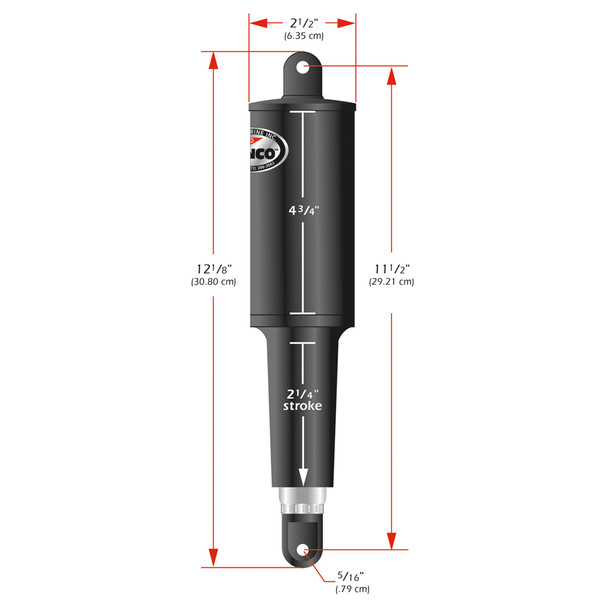

The 101 Actuator is used in all Standard, Edge Mount and Standard Performance kits. 2.25 stroke. Overall length (tip to top) is 12.5 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 5/16" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine 15061-001 actuator is a reliable and high-performance component designed for various marine applications. Featuring a 2-1/4 inch stroke and a total length of approximately 12.5 inches, this electric actuator provides swift and precise movement for your equipment. Constructed with high-impact glass fiber-filled, ultraviolet-resistant nylon and reinforced with 316 stainless steel tubing, it ensures durability and resistance to harsh marine environments. Its integrated design includes a molded brass thrust bearing and an improved O-ring seal, delivering consistent performance and sealing integrity under demanding conditions.
Features:
- Lenco's ballscrew design offers more reliability and double the power of typical hydraulic systems
- High-torque motor capable of pushing up to 500 pounds with ease
- Waterproof 'Plug & Play' Deutsch connectors prevent water intrusion and simplify installation
- Operates on 24 volts, suitable for marine power systems
- Includes 5/16-inch mounting hardware for secure attachment
- Comes with a 6-foot cable for flexible installation options
- Enhanced pressure-tight torx screws and anti-extrusion AXR seal stabilization system improve durability
- Upper mounting bracket features a gland seal for added protection
- Over-molded cable design provides a stronger, tighter seal
