Description

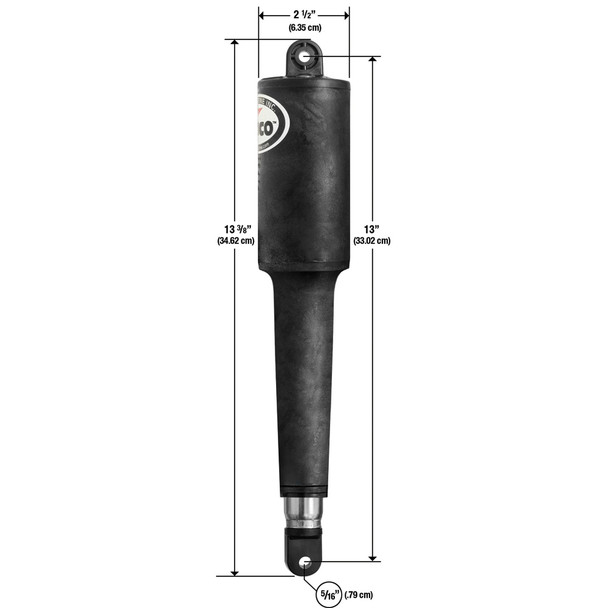

102 Series Standard Actuator - 24V - 4-1/4" Stroke w/Hardware
The 102 Actuator is used with Trolling Tab systems sold prior to 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 14 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.
Specifications:
- Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
- Stronger top cap and mounting clevis design
- Improved pressure-tight torx screws
- Integrated wiper seal at actuator base
- Molded-in brass thrust bearing design
- Thicker and stronger motor housing wall
- Improved O-Ring design for more consistent seal
- Over-molded cable providing a stronger tighter seal
- Upper mounting bracket with gland seal
Features:
- Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
- Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
- Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
- 24 Volt
- 5/16" mounting hardware
- 6 foot cable
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Lenco Marine 102 Series Standard Electric Actuator is designed for reliable performance in trolling tab systems and OEM applications, particularly those installed prior to 2000. Featuring a 4-1/4 inch stroke, this actuator offers precise control and robust durability for marine use. Its overall length measures approximately 14 inches, making it suitable for various installation configurations. Built with high-impact, ultraviolet-resistant nylon reinforced with glass fiber and supported by 316 stainless steel tubing, the actuator is engineered to withstand harsh marine environments. Its construction ensures resistance to corrosion, UV damage, and mechanical stress, providing long-lasting operation in demanding conditions. The actuator incorporates several innovative features, including the anti-extrusion ring (AXR) seal stabilization system for enhanced sealing performance, a stronger top cap and mounting clevis for increased durability, and improved pressure-tight torx screws for secure assembly. An integrated wiper seal at the actuator base helps prevent debris ingress, while the molded-in brass thrust bearing ensures smooth operation. The thicker motor housing wall adds to the structural strength, and an improved O-ring design guarantees a consistent seal. The over-molded cable and gland-sealed upper mounting bracket contribute to a waterproof connection, simplifying maintenance and installation. Leveraging Lenco's ballscrew design, the actuator provides reliable and twice the power of typical hydraulic systems, easily pushing loads up to 500 pounds. The waterproof Deutsch connectors used for connections eliminate water intrusion risks, ensuring dependable operation in marine environments. The actuator operates on 24 volts and includes 5/16 inch mounting hardware with a 6-foot cable for versatile installation options. Please note that this product contains chemicals known to cause reproductive harm, as listed by California's Proposition 65, and should be handled with care. For further assistance, contact the manufacturer directly, as returns are typically not accepted at the point of purchase.
Features:
- Lenco's ballscrew design offers increased reliability and double the power compared to standard hydraulic actuators
- High-torque motor easily pushes loads up to 500 pounds for demanding marine applications
- Waterproof Deutsch "Plug & Play" connectors eliminate water intrusion risk, ensuring dependable electrical connections
- Enhanced sealing with anti-extrusion ring (AXR), molded brass thrust bearing, and improved O-ring for consistent performance
- Constructed from UV-resistant, impact glass-filled nylon with stainless steel tubing for durability in harsh environments
- Includes 24V operation, 5/16 inch mounting hardware, and a 6-foot cable for flexible installation
