Description

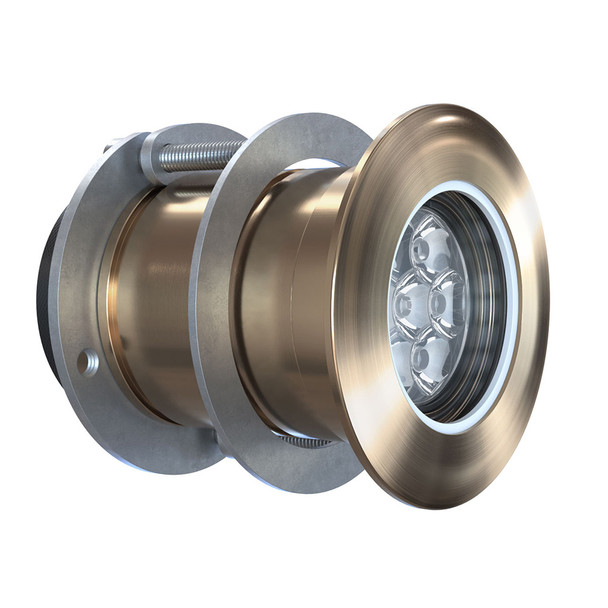

Explore E2 Narrow Beam - Ultra White
The E2 is our latest addition to the Explore range, giving customers a compact smaller XFM light for tight installation spaces, but with all the build quality and premium features of the larger lights in the range.
Choice of Beam
With the E2, you can choose either the signature Explore Series wide-angle beam
(90 x 20 Elliptical), or a new narrow laser beam shape (20 Circular), depending on your desired effect.
Advanced Water Ingress Protection
The Explore E2 benefits from full IP69k Certification, the highest possible rating. Also, the rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.
XFM Removal
The Explore E2 has the same XFM capabilities as the larger lights in the range, being able to remove the light body for maintenance or upgrades, without the need to haul the boat.
Control your Explore E2 lights
Control your Explore E2 lights via the 3rd party switch or push button of your choice.
Features:
- Elliptical 90 / 20 Wide Beam Option
- Circular 20 Beam Option
- Up to 3000 Fixture Lumens
- Compact design and built-in driver.
- Ultra-low profile outer bezel.
- IP69k Certification + In-hull Temporary Submersion Protection
Specifications:
- Fixture Lumens* (total light output from a finished fixture): 3000
- Beam angle (Wide): 90 / 20 Elliptical
- Beam angle (Narrow): 20 Circular
- IP Rating: IP69k
- Minimum-Maximum operating voltage DC: 10-30V DC
- Current / Amp draw (DC): 3.5A@12V DC / 1.5A@24V DC
- Driver type: Internal
- Correlated Color Temp: 6500k (White)
- Rear Temporary Submersion Protection: Yes
- Fish Strobe: Yes
- Anti-fouling properties: Tritonium coated lens
- LED Manufacturer: CREE
Mounting Recommendations:
- Boat size: Up to 20m (65)
- Transom / Hull spacing: 1 - 1.5m (3-5)
- Installation depth below waterline: 25-30cm (10-12)
- Maximum Hull Thickness: 60mm (2.4)
Physical:
- Total weight: 0.8kg (1.76lbs)
- Total Diameter (Including Bezel): 80mm (3.15)
- Diameter Of Body: 59mm (2.32)
- Profile Of Fixture: 3.5mm (0.14)
- Overall Length: 101.5mm (4)
- Minimum Space Required Inside The Hull: 172mm (6.78)
- Hole Cut-Out: 60mm (2.37)
- Material (Mounting Tube / Bezel): AB2 Aluminium Bronze
- Material (Light Body): AB2
- Lens: Glass
- Optics (Wide Beam Option): Hybrid Collimated
- Optics (Narrow Beam Option): Collimated
- CE Approved: Yes
The OceanLED Explore E2 Narrow Beam - Ultra White offers a compact yet powerful lighting solution designed for tight installation spaces on boats. Featuring a high-quality build and advanced features, this light provides versatile illumination options suitable for various marine applications. Its elliptical 90 x 20 wide beam delivers broad coverage, while the optional 20mm circular narrow laser beam creates focused lighting for precise visibility. The E2's sleek, low-profile design incorporates a built-in driver and ultra-low profile bezel, making it ideal for discreet installation. Crafted with Tritonium coated lens technology, the light offers enhanced anti-fouling properties and durability in harsh marine environments. The full IP69k certification guarantees superior water ingress protection, including temporary submersion resistance, ensuring reliable performance even in rough seas or wave conditions. The E2's innovative XFM removal capability allows maintenance or upgrades without hauling the boat, providing convenience and reducing downtime. Control options are flexible, enabling operation via third-party switches or push buttons, integrating seamlessly into existing boat systems. With a maximum lumen output of 3,000 lumens and a color temperature of 6500K, the Explore E2 delivers bright, white illumination suitable for navigation, docking, or underwater inspection. Its efficient internal driver supports a wide operating voltage range of 10-30V DC, with low current draw for energy efficiency. The fixture is designed for boats up to 65 feet, with recommended mounting on transoms or hulls spaced 3-5 feet apart, installed at depths of 10-12 inches below the waterline. Constructed from durable AB2 aluminum bronze material, the light's glass lens and hybrid collimated optics optimize beam performance. The Explore E2's compact design and lightweight construction make it a versatile choice for marine lighting, ensuring long-lasting, reliable operation in demanding conditions.
Features:
- Elliptical 90 / 20 Wide Beam Option for broad illumination
- Circular 20mm Narrow Laser Beam for focused lighting
- Up to 3000 fixture lumens for bright, effective output
- Compact design with built-in driver for streamlined installation
- Ultra-low profile outer bezel for discreet mounting
- Full IP69k certification with in-hull temporary submersion protection
- Replaceable XFM light body for maintenance without hauling the boat
- Flexible control via third-party switch or push button
- Corrosion-resistant Tritonium coated lens for anti-fouling
- Durable AB2 aluminum bronze construction with glass lens
