Description

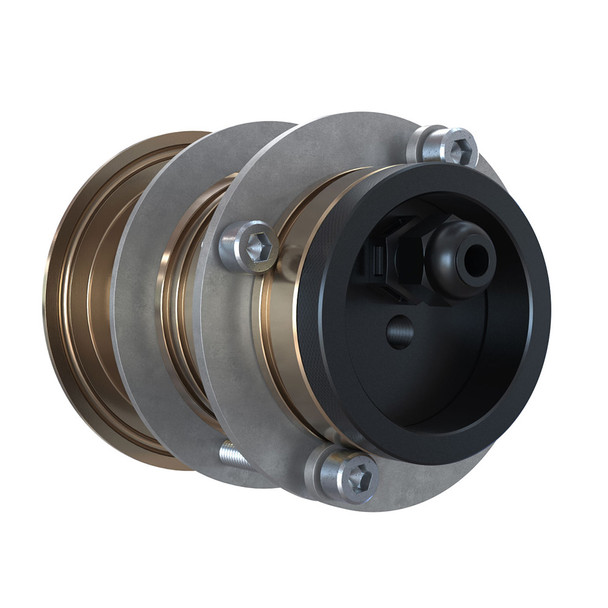

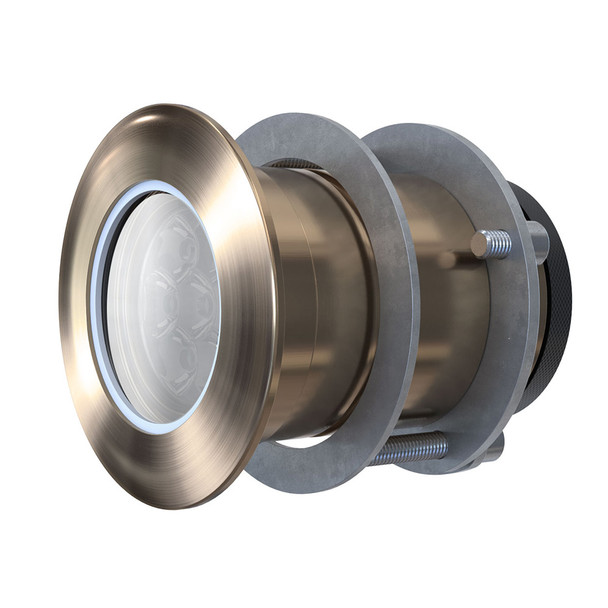

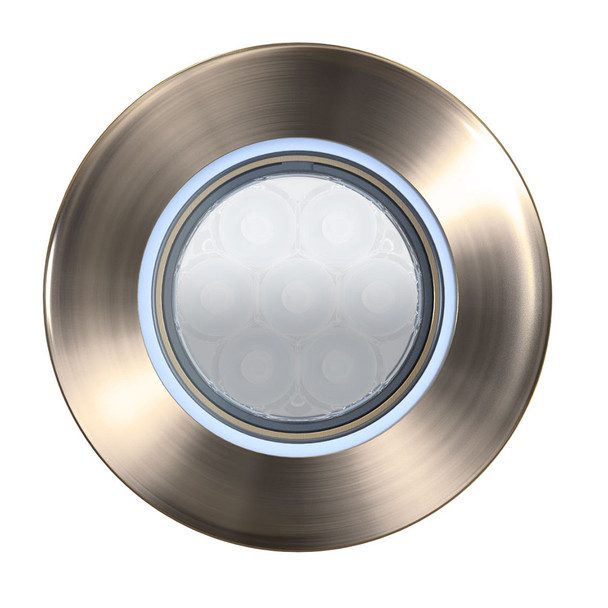

Explore E2 Wide Beam - Midnight Blue
The E2 is our latest addition to the Explore range, giving customers a compact smaller XFM light for tight installation spaces, but with all the build quality and premium features of the larger lights in the range.
Choice of Beam
With the E2, you can choose either the signature Explore Series wide-angle beam
(90 x 20 Elliptical), or a new narrow laser beam shape (20 Circular), depending on your desired effect.
Advanced Water Ingress Protection
The Explore E2 benefits from full IP69k Certification, the highest possible rating. Also, the rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.
XFM Removal
The Explore E2 has the same XFM capabilities as the larger lights in the range, being able to remove the light body for maintenance or upgrades, without the need to haul the boat.
Control your Explore E2 lights
Control your Explore E2 lights via the 3rd party switch or push button of your choice.
Features:
- Elliptical 90 / 20 Wide Beam Option
- Circular 20 Beam Option
- Up to 3000 Fixture Lumens
- Compact design and built-in driver.
- Ultra-low profile outer bezel.
- IP69k Certification + In-hull Temporary Submersion Protection
Specifications:
- Fixture Lumens* (total light output from a finished fixture): 3000
- Beam angle (Wide): 90 / 20 Elliptical
- Beam angle (Narrow): 20 Circular
- IP Rating: IP69k
- Minimum-Maximum operating voltage DC: 10-30V DC
- Current / Amp draw (DC): 3.5A@12V DC / 1.5A@24V DC
- Driver type: Internal
- Correlated Color Temp: 6500k (White)
- Rear Temporary Submersion Protection: Yes
- Fish Strobe: Yes
- Anti-fouling properties: Tritonium coated lens
- LED Manufacturer: CREE
Mounting Recommendations:
- Boat size: Up to 20m (65)
- Transom / Hull spacing: 1 - 1.5m (3-5)
- Installation depth below waterline: 25-30cm (10-12)
- Maximum Hull Thickness: 60mm (2.4)
Physical:
- Total weight: 0.8kg (1.76lbs)
- Total Diameter (Including Bezel): 80mm (3.15)
- Diameter Of Body: 59mm (2.32)
- Profile Of Fixture: 3.5mm (0.14)
- Overall Length: 101.5mm (4)
- Minimum Space Required Inside The Hull: 172mm (6.78)
- Hole Cut-Out: 60mm (2.37)
- Material (Mounting Tube / Bezel): AB2 Aluminium Bronze
- Material (Light Body): AB2
- Lens: Glass
- Optics (Wide Beam Option): Hybrid Collimated
- Optics (Narrow Beam Option): Collimated
- CE Approved: Yes
The OceanLED Explore E2 Wide Beam - Midnight Blue is a versatile and compact marine lighting solution designed for demanding boat installations. This high-performance LED fixture offers up to 3000 lumens of bright white illumination, making it suitable for both navigation and aesthetic applications on vessels up to 65 feet in length. Crafted with premium materials, including AB2 aluminium bronze and a Tritonium coated lens, the E2 ensures durability and resistance to harsh marine environments. Its ultra-low profile design and built-in driver facilitate seamless integration into tight spaces below the waterline, providing a sleek appearance without compromising performance.
The Explore E2 features a choice of beam patterns to suit various lighting needs. The elliptical 90 x 20 wide-angle beam provides extensive coverage, ideal for illuminating large areas or creating a broad, even glow. Alternatively, the narrow 20 circular laser beam offers precise, focused lighting for pinpoint effects or signaling. The fixture's advanced IP69k certification guarantees full water ingress protection, including temporary hull submersion, making it suitable for boats operating in rough seas or extreme conditions. The light’s innovative design allows the body to be removed for maintenance or upgrades without hauling the vessel, thanks to its XFM removal capability.
Control options are flexible, allowing integration with third-party switches or push buttons for customized operation. The E2's compact dimensions—just over 6 inches in length and less than 3 inches in diameter—make it easy to install in confined spaces. Its low power consumption, with a maximum draw of 3.5A at 12V DC, ensures efficient operation while maintaining high output. Overall, the OceanLED Explore E2 Wide Beam - Midnight Blue is a durable, high-quality lighting fixture designed to enhance marine vessels with reliable illumination and easy maintenance features.
Features:
- Elliptical 90 x 20 wide beam option for broad illumination
- Circular 20 laser beam option for focused lighting
- Up to 3000 fixture lumens for bright white light
- Compact design with built-in driver for easy installation
- Ultra-low profile outer bezel for seamless integration
- IP69k certification and in-hull temporary submersion protection for marine durability
