Description

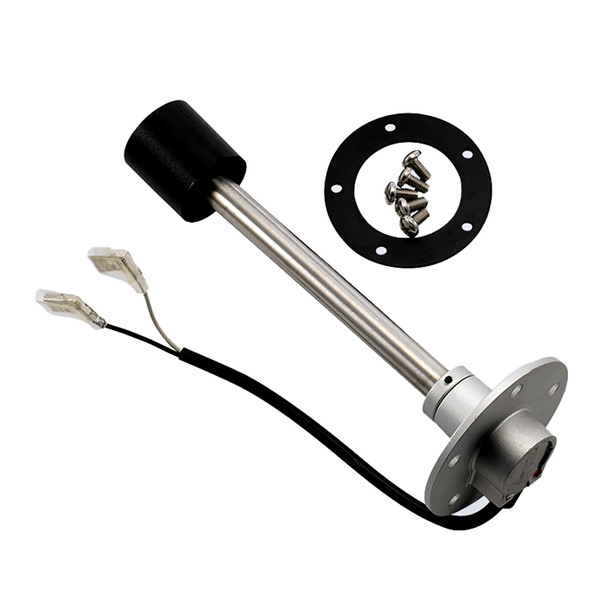

Reed Switch Fuel Sender - 450 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 17.7" (450mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-645) offers a reliable solution for measuring fuel levels in tanks up to 17.7 inches deep. Designed with a tubular, floatless construction, this fuel sender eliminates the common issues associated with traditional swing arm sensors, such as erratic pointer movements caused by fuel slosh. Its innovative design uses a resistance measurement method and a dampening tubular structure, providing smooth and accurate readings without the wear associated with moving parts. This makes it ideal for applications where space constraints prevent the use of conventional float arms or where durability is a priority. The unit is top-mounted and compatible with standard SAE 5-hole mounting flanges, making installation straightforward with included hardware and neoprene gasket for a secure, sealed fit. Constructed from durable stainless steel, the VDO fuel sender is resistant to corrosion and compatible with ethanol-blended fuels, thanks to its Viton gasket. It has a resistance range of 240-33 Ohms, aligning with most marine fuel gauges, ensuring accurate fuel level readings. The insulated 1/4-inch spade connectors facilitate easy wiring connections, with a ground-floating configuration for reliable operation. This product is suitable for use in various marine, RV, and truck fuel tanks, providing long-lasting performance and precise fuel measurement. Please note that this product may contain chemicals such as lead, which are regulated by California's Proposition 65. For more information, visit P65Warnings.ca.gov. Whether replacing an existing sensor or installing in a new tank, the VDO Reed Switch Fuel Sender ensures consistent, accurate fuel monitoring in demanding environments.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for compatibility with modern fuel blends
- Resistance range of 240-33 Ohms for compatibility with standard marine gauges
- Designed for tanks with a depth of 17.7 inches (450mm)
- Insulated 1/4-inch spade connectors for simple wiring
- Standard 5-hole mounting flange for easy installation
- Compatible with most standard marine fuel gauges
- Ground-floating configuration for reliable operation
- Floatless, tubular design prevents fuel slosh effects and wear
