Description

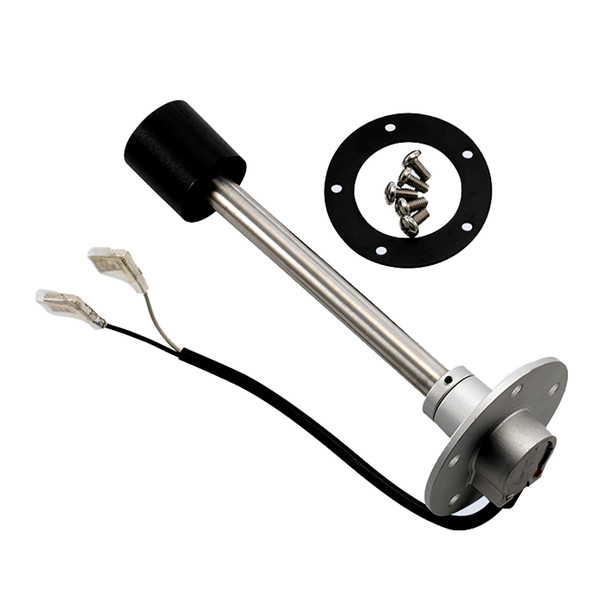

Reed Switch Fuel Sender - 250mm
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 10" (250mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The VDO Reed Switch Fuel Sender (Part Number 226-625) offers a reliable and maintenance-free solution for measuring fuel levels in tanks up to 10 inches deep. Unlike traditional float-based sensors, this innovative design features a floatless tubular construction that acts as a dampener, reducing the effects of fuel slosh and providing more stable readings. Its stainless steel construction ensures durability and resistance to corrosion, making it suitable for demanding marine environments. The sender's resistance range of 240-33 Ohms makes it compatible with most standard marine fuel gauges, ensuring easy integration into existing systems. The unit is top-mounted, utilizing a standard SAE 5-hole mounting flange with a neoprene gasket and hardware included for straightforward installation. The insulated 1/4-inch spade connectors facilitate secure electrical connections, and the device's ground-floating design ensures accurate readings without interference. Crafted from ethanol-resistant Viton, this fuel sender maintains performance even with modern ethanol-blended fuels. Its compact size and robust construction make it an ideal choice for boat owners and marine service professionals seeking a dependable fuel measurement solution. Please note, this product is sold individually and complies with industry standards for marine fuel monitoring systems.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for modern fuel compatibility
- Resistance range of 240-33 Ohms for universal gauge compatibility
- Suitable for tanks with a depth of 10 inches or 250mm
- Insulated 1/4-inch spade connectors for secure wiring
- Standard 5-hole mounting flange with included gasket and hardware
- Compatible with most standard marine fuel gauges
- Ground-floating sensor design for accurate readings
- Floatless tubular design reduces fuel slosh impact and wear
