Reed Switch Fuel Sender - 200 MM
Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh.
The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware.
Features:
- Stainless steel construction
- Ethanol resistant Viton gasket
- 240-33 Ohm range
- Fits tanks with a depth of 8" (200mm)
- Insulated 1/4"" spade connectors
- Standard 5 hole mounting flange
- Works with most standard marine fuel gauges
- Ground - Floating
- Connection - Insulated .25" Spade
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

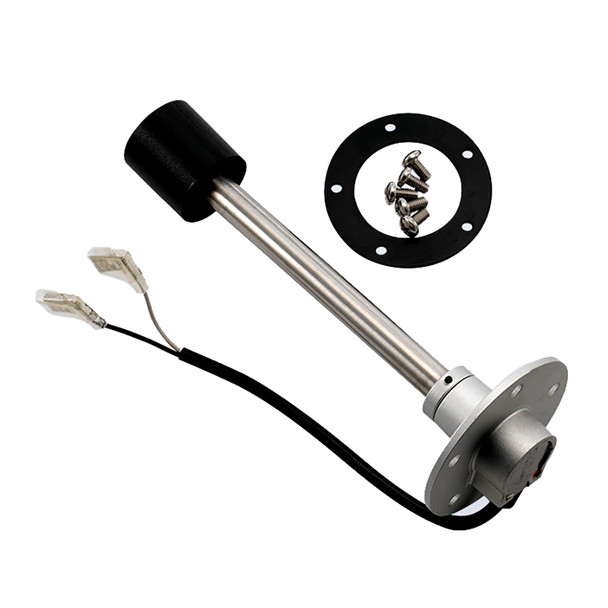

The VDO Reed Switch Fuel Sender (Part #226-620) offers a reliable and innovative solution for measuring fuel levels in tanks up to 8 inches deep. Unlike traditional float-based gauges that rely on rotating arms and resistance cards, this floatless design eliminates side-to-side motion and wear points, resulting in more accurate readings and increased longevity. Its tubular structure acts as a dampener, reducing the impact of fuel slosh and providing steady gauge readings even during vehicle movement or rough conditions. Constructed from durable stainless steel, the sender is built to withstand harsh environments and resist corrosion over time.
This fuel sender features an ethanol-resistant Viton gasket, ensuring compatibility with modern fuels containing ethanol. The device operates within a 240-33 Ohm range, making it compatible with most standard marine fuel gauges. It is designed for top mounting and utilizes a common SAE 5-hole flange for straightforward installation. The connection is made via insulated ¼ inch spade connectors, providing a secure and corrosion-resistant electrical connection. The sender's ground and connection points are insulated and floating, ensuring reliable operation without interference.
Ideal for marine and other fuel tank applications, the VDO Reed Switch Fuel Sender combines durability, accuracy, and ease of installation. It is sold individually and includes the necessary mounting hardware and neoprene gasket for a complete setup. Whether replacing an existing sensor or installing a new fuel measurement system, this sender provides an efficient and dependable solution for fuel level management in various vehicles and equipment.
Features:
- Stainless steel construction for durability and corrosion resistance
- Ethanol-resistant Viton gasket for fuel compatibility
- Operates within a 240-33 Ohm range for standard gauge compatibility
- Designed for tanks with an 8-inch (200mm) depth
- Insulated ¼ inch spade connectors for secure electrical connection
- Standard SAE 5-hole mounting flange for easy installation
- Compatible with most standard marine fuel gauges
- Ground and connection points are insulated and floating
- Includes neoprene gasket and mounting hardware
