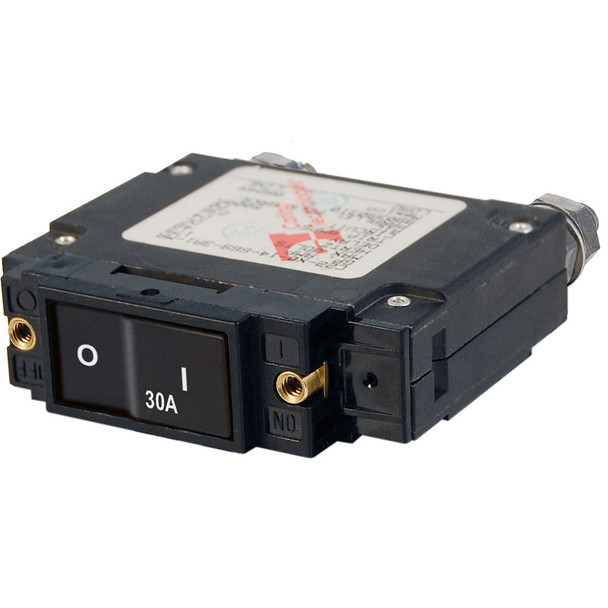

Blue Sea Systems 7545 C-Series Flat Rocker Circuit Breaker - Single Pole 30A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 30A AC / 30A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7545 C-Series Flat Rocker Circuit Breaker offers reliable overcurrent protection for marine applications, including inverters, bow thrusters, and windlasses. Its single-pole design provides a straightforward solution for safeguarding electrical systems on boats, combining switching and circuit protection into a single compact device. The flush-mounted rocker actuator ensures the breaker remains securely in the "ON" position, minimizing accidental switches, while the color-coded actuator clearly indicates the "OFF" state for easy status recognition. This breaker is ignition protected, making it safe for installation aboard gasoline-powered boats, and features a trip-free mechanism that prevents the breaker from being held closed after a trip, ensuring safety during fault conditions. Its magnetic hydraulic trip system guarantees consistent operation with an interrupt capacity of up to 3500A at 240V AC, providing robust protection against electrical faults. Designed for durability, it can withstand a wide temperature range from -40°C to 85°C and supports up to 10,000 switching cycles, making it suitable for demanding marine environments. The breaker’s terminal stud is made of tin-plated brass, with a torque specification of 35 in-lb, ensuring secure connections. Its compact design, lightweight construction, and high performance make the Blue Sea Systems 7545 a dependable choice for marine electrical systems that require both safety and convenience.

Features:

• Flush-mounted flat rocker actuator minimizes accidental switching

• Color-coded actuator indicates "OFF" position for quick visual status

• Provides overcurrent protection for critical marine equipment

• Combines switching and circuit protection in a single device for space-saving installation

• "Trip Free" mechanism prevents holding the breaker closed after a trip for safety

• Ignition protected design ensures safe installation aboard gasoline-powered boats

• High interrupt capacity up to 3500A at 240V AC, offering robust fault protection

• Supports up to 10,000 switching cycles for durability in demanding environments

• Operates reliably within temperature ranges from -40°C to 85°C

• Secure terminal connections with #6-32 stainless steel mounting screws and 1/4-20 tin-plated brass terminal stud
