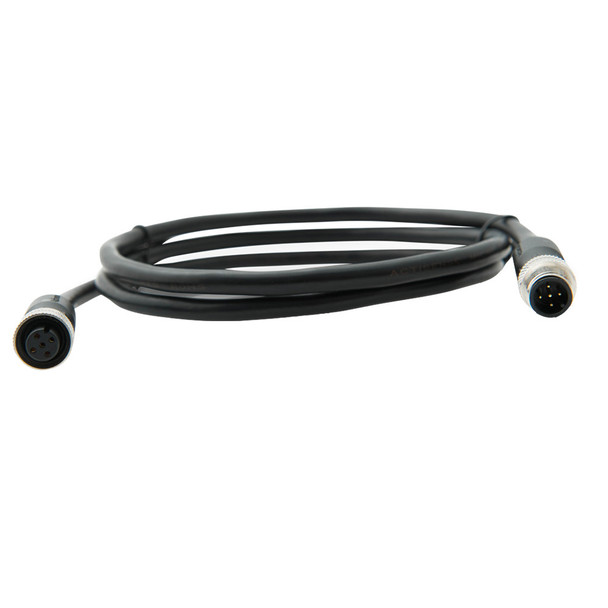

Actisense A2K-TDC-6M NMEA 2000 Micro Cable Assembly - 6M

A2K-TDC-6M NMEA2000 Micro Cable Assembly - 6M

Available in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.

Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.

NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.

NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.

The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

• Rated Current - 3A


• Rated Voltage - 60VDC


• Male Contact - Brass, gold-plated


• Female Contact - Phosphor bronze, gold plated


• Contact Carrier - PBT, black


• Contact Polarization - Standard M12 -A- polarization


• Mating Thread - M12


• Screw Cap - Brass, nickel plated


• O-Ring Seal - Rubber, black


• Housing - PVC, black


• Power Pair - 22 AWG (19-strand tinned copper)


• Data Pair - 24 AWG (19-strand tinned copper)


• Drain - 22 AWG (19-strand tinned copper)


• Braid - 37 AWG (tinned copper)


• Jacket Material - 0.8mm Nom. PVC, black


• Jacket Outer Diameter - 6.85mm 0.254mm


• Weight - 430g


• Protection - IP67 (when mated)


• Operating Temperature - -20C to +70C


• Storage Temperature - -40C to +85C

The Actisense A2K-TDC-6M NMEA 2000 Micro Cable Assembly provides a reliable and efficient solution for establishing or extending your NMEA 2000 network. Designed with high-quality UL-certified cable, this assembly ensures durability and quality reassurance during installation. The cable features five internal wires—power, ground, two data lines, and a drain wire—encased in a waterproof jacket, which offers protection against external Radio Frequency Interference (RFI) and reduces RFI emissions, maintaining signal integrity across your marine electronics system. Suitable for creating backbone segments up to 100 meters, the cable supports flexible network configurations, with the ability to extend beyond 100 meters using additional mini cables to maintain optimal performance. The maximum drop cable length is 6 meters, and the total of all drop lengths should not exceed 72 meters to ensure proper functionality. Actisense’s expertise in interconnect technology ensures that this cable assembly is compatible with a wide range of NMEA 2000 devices, providing seamless integration and reliable data transmission. The assembly features brass, gold-plated male contacts and phosphor bronze, gold-plated female contacts, housed within a durable black PVC shell, and includes an IP67-rated seal for protection against water ingress when connected. The cable’s construction uses 22 AWG power wires, 24 AWG data wires, and 22 AWG drain wires, all with tinned copper strands, wrapped in a black PVC jacket designed for outdoor and marine environments. Operating temperature ranges from -20°C to +70°C, making it suitable for various weather conditions, while storage temperature tolerances extend from -40°C to +85°C. The assembly is lightweight at approximately 15 ounces, making installation straightforward. Whether used for drop connections or backbone extensions, the Actisense A2K-TDC-6M ensures a high-quality, dependable connection across your marine communication network. For detailed installation instructions, refer to the manufacturer’s manual available online.

Features:

• Rated Current: 3A for reliable power transfer

• Rated Voltage: 60VDC suitable for marine electronics

• Male Contact: Brass, gold-plated for corrosion resistance

• Female Contact: Phosphor bronze, gold-plated for durability

• Contact Carrier: PBT, black for mechanical strength

• Contact Polarization: Standard M12-A for compatibility

• Mating Thread: M12 thread for secure connection

• Screw Cap: Brass, nickel-plated for corrosion protection

• O-Ring Seal: Rubber, black for waterproofing

• Housing: PVC, black, durable for marine environments

• Power Pair: 22 AWG, 19-strand tinned copper for power transmission

• Data Pair: 24 AWG, 19-strand tinned copper for data signals

• Drain: 22 AWG, tinned copper for shielding

• Braid: 37 AWG, tinned copper for electromagnetic interference shielding

• Jacket Material: 0.8mm PVC, black for environmental protection

• Outer Diameter: 6.85mm for flexible routing

• Weight: Approximately 15 ounces for easy handling

• Protection: IP67 when mated for water resistance

• Operating Temperature: -20°C to +70°C for versatile use

• Storage Temperature: -40°C to +85°C for extended storage
