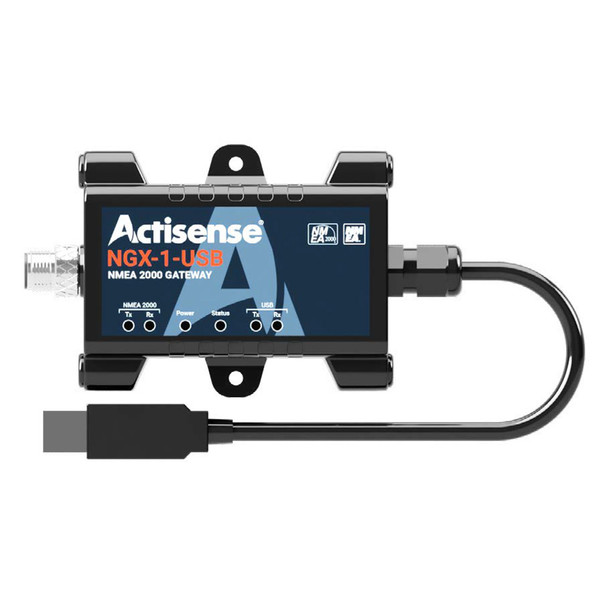

Actisense NGX-1-USB 0183 to NMEA 2000 Gateway with PC Interface and USB Connection

0183 to N2K Gateway with PC Interface, USB Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <> PC interface, or as a bi-directional NMEA 0183 <> NMEA 2000 conversion gateway.

Features:

• View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.


• View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.


• Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).


• Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.


• Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.


• Vital NMEA 2000 diagnostic tool


• Fully isolated to prevent dangerous ground loops


• Up to 230,400 baud data transfer rate


• Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set


• Supports Fast Heading at 10Hz


• Multiple diagnostic LEDs


• Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus


• Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus


  • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided


  • Configure and flash-update Actisense products on the bus


  • Upgrade NMEA 0183 equipment to NMEA 2000


  • Allow NMEA 0183 devices to receive vital NMEA 2000 data


  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together


  • Reliable, renowned bi-directional conversion engine


  • Supports a wide range of conversions including AIS


  • Easily configurable using Actisense Toolkit





Technical Specifications

Power Supply

• Supply Voltage (NMEA 2000 Port) - 9 to 30V DC


• Supply Current (NMEA 2000 Port) - 62mA @ 9V DC


• Load Equivalent Number (LEN) - 2

NMEA 2000 Port

• Speed / Baud Rate - 250kbps


• Connectivity - M12 Male (A coded)

USB Port

• Compatibility - USB 1.1, 2.0 and 3.0


• Speed / Baud Rate - 4800 to 230400 Baud


• Connectivity - Male type A plug moulded onto cable


• Cable Length - 1.8m

Isolation

• NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V


• NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

• Housing Material Body - Flame retardant Polycarbonate


• Housing Material End Caps - Flame retardant PBT


• Weight - 113g

Approvals and Certifications

• NMEA 2000 - NMEA 2000 Certified


• NMEA 0183 - Meets IEC 61162-1 61162-2 Requirements


• RoHS and REACH - Compliant


• Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4


• EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7


• Environmental Protection IP67


• Operating Temperature -25C to +70C


• Storage Temperature -30C to +70C


• Recommended Humidity 0 to 93% RH @ 40C


• Guarantee 3 years, extended to 5 years upon registration

The Actisense NGX-1-USB is an advanced multi-function gateway designed to streamline marine network integration by bridging NMEA 0183 and NMEA 2000 protocols. This versatile device enables seamless data conversion and PC interfacing, making it an essential tool for modern boat electronics installations. Its intelligent gateway technology allows users to configure the device as an NMEA 2000 to PC interface or as a bi-directional converter between NMEA 0183 and NMEA 2000, providing maximum flexibility for various marine navigation setups. The device supports full visibility of all NMEA 2000 PGNs through the Actisense NMEA Reader software, ensuring comprehensive network diagnostics and data monitoring. With the largest conversion library available, it also displays converted NMEA 0183 data, facilitating integration with legacy instruments and new systems alike. The NGX-1-USB is compatible with popular PC applications such as TimeZero and OpenCPN, enabling users to easily access and interpret their vessel’s data in real time. The device can be configured via the Actisense Toolkit, allowing detailed customization of transmission and reception parameters, including Tx/Rx lists and rates. Its galvanic isolation and high-speed data transfer capabilities (up to 230,400 baud) ensure reliable, interference-free operation while safeguarding sensitive electronics. Additionally, the device supports Fast Heading at 10Hz and multiple diagnostic LEDs for troubleshooting. The robust housing, made from flame-retardant polycarbonate and PBT end caps, ensures durability in harsh marine environments, with an IP67 environmental rating for water and dust resistance. Certified for NMEA 2000 and IEC standards, the NGX-1-USB meets rigorous safety and quality requirements, making it suitable for professional and recreational marine applications. Its compact design and comprehensive features make the Actisense NGX-1-USB an invaluable tool for integrating and diagnosing complex marine electronic networks, ultimately enhancing navigation safety and system reliability on board.

Features:

• Supports full NMEA 2000 PGN viewing on Actisense NMEA Reader

• Converts NMEA 0183 data to NMEA 2000 and vice versa with extensive library

• Compatible with popular PC navigation applications like TimeZero and OpenCPN

• Configurable via Actisense Toolkit for customized baud rates and data transmission

• Provides galvanic isolation to prevent ground loop issues

• Supports high-speed data transfer up to 230,400 baud

• Supports Fast Heading updates at 10Hz for accurate navigation data

• Multiple diagnostic LEDs for status and troubleshooting

• Robust, IP67-rated housing for marine environment durability

• Certified for NMEA 2000 and IEC standards, ensuring compliance and safety
