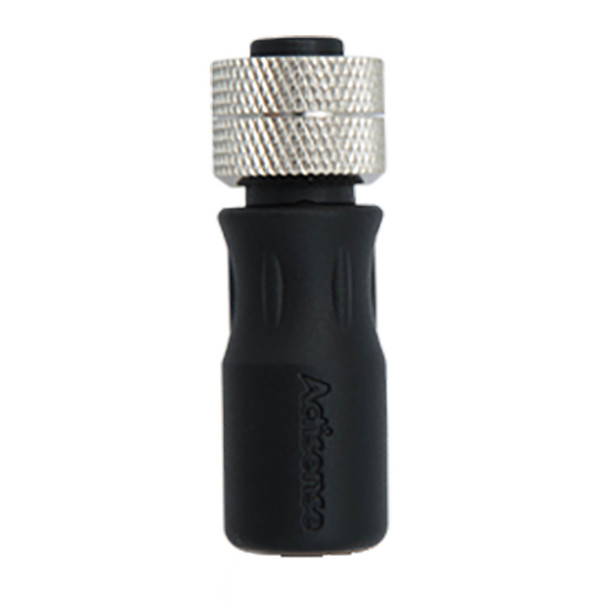

NMEA2000 Micro Terminator - Female

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

• Rated Voltage (power pair) - 60VDC


• Rated Current - 4A


• Internal Termination Resistors - 120 1% 500mW

Mechanical

• Female Contact - Phosphor bronze, gold plated


• Contact Carrier - PA66 (30% Glass filled), black


• Contact Polarization - Standard M12 -A- polarization


• Mating Thread - M12


• Screw Cap - Brass, nickel plated


• O-Ring Seal - Rubber, Black


• Housing - PVC, black


• Weight - 15g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -25C to +70C


• Storage Temperature - -40C to +85C

The Actisense NMEA2000 Micro Terminator - Female is an essential component designed to ensure optimal signal integrity within NMEA 2000 marine communication networks. Engineered for durability, this terminator withstands harsh marine environments with robust construction and high-quality materials, making installation straightforward and reliable. Proper network configuration requires two terminators, one at each end of the backbone, and this product fulfills that requirement efficiently. Its compatibility with NMEA 2000 standards makes it an ideal choice for boat builders, marine electronics installers, and maintenance professionals seeking dependable performance.
Constructed with a phosphor bronze, gold-plated female contact and a black PA66 contact carrier, this terminator offers excellent electrical conductivity and corrosion resistance. The design incorporates a standard M12 - A- polarization contact polarization with a M12 mating thread, complemented by a brass, nickel-plated screw cap for secure connections. An O-ring rubber seal ensures IP67 protection when mated, providing resistance against water and dust ingress. The housing, made from black PVC, adds to its durability while maintaining a compact form factor that is easy to install in tight spaces.
Electrical specifications include a rated voltage of 60VDC and a maximum current of 4A, with internal 120Ω 1% 500mW termination resistors that ensure accurate signal transmission. The product's operating temperature range from -25°C to +70°C and storage capabilities from -40°C to +85°C make it suitable for diverse marine conditions. Weighing approximately 0.6 ounces, it is lightweight and easy to handle during installation. Certified for marine environments, this terminator guarantees reliable operation, weathering the challenges of saltwater exposure, temperature fluctuations, and mechanical stress. For detailed installation instructions, refer to the manufacturer’s manual available online. The Actisense NMEA2000 Micro Terminator - Female is an indispensable part of any NMEA 2000 network, delivering consistent performance and durability for marine data communication systems.

Features:

• Designed for NMEA 2000 marine data networks ensuring signal integrity

• Robust construction with phosphor bronze, gold-plated female contact

• IP67 rated waterproof and dustproof protection when mated

• Internal 120Ω 1% 500mW termination resistors for accurate signal transmission

• Easy to install with standard M12 - A- polarization and brass nickel-plated screw cap

• Operates within a temperature range of -25°C to +70°C, suitable for diverse marine environments

• Constructed with durable PVC housing and rubber O-ring seal

• Lightweight design weighing approximately 0.6 ounces

• Meets marine certification standards for corrosion and weather resistance

• Includes comprehensive documentation for installation and maintenance
