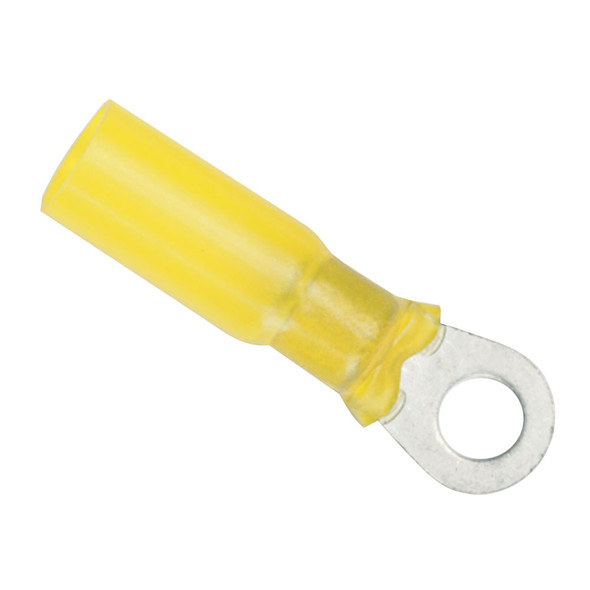

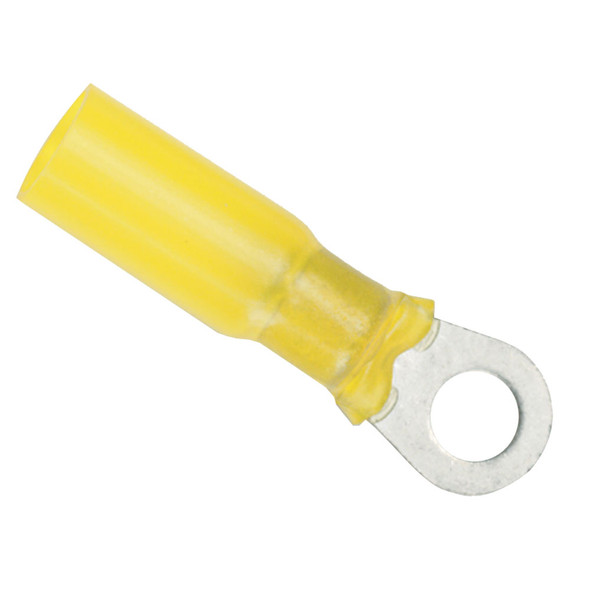

Ancor 12-10 Gauge #8 Heat Shrink Ring Terminal - 3 Pack for Marine and Electrical Applications

12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Gauge Size: 12-10
Screw Size: #8
Quantity: 3

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire Range: 12-10




• mm: 3-5



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor Part Number 312203 provides a reliable solution for secure electrical connections in demanding environments. Designed for wire ranges of 12-10 gauge, these ring terminals feature a #8 screw size for easy installation. The product includes three high-quality terminals suitable for marine, automotive, and industrial use. Each terminal is equipped with a heat-activated adhesive lining that creates an impervious seal against salt water, oil, acids, and sunlight, ensuring long-lasting performance and corrosion resistance. The cross-linked polyolefin tubing used in these terminals is significantly stronger than standard PVC and will not burn like PVC, providing increased durability and safety during installation and operation. The nylon insulator offers excellent resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, making these terminals ideal for harsh environments. UL listed and CSA recognized, these heat shrink connectors shrink to one-third of their original size at 257°F (125°C), forming a water-tight seal that offers strain relief and vibration resistance. The pure copper construction ensures maximum current flow, while the brazed seam enhances overall strength. With a high shrink ratio and operating temperature range from 40°C to 110°C, these terminals are versatile and reliable for various electrical applications. Tinned for corrosion resistance, the Ancor heat shrink ring terminals combine ease of use with durability, ensuring secure, long-lasting connections in marine and other challenging environments. Please note that this product may contain chemicals known to cause reproductive harm, as detailed in California’s Proposition 65 warnings.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal against water, oil, acids, and sunlight

• Nylon insulator offers resistance to sunlight, water, oil, chemicals, vibration, and damage

• UL Listed and CSA Recognized for safety and quality assurance

• Shrinks to one-third of original size at 257°F (125°C)

• High shrink ratio ensures secure fitting and strain relief

• Operating temperature range from 40°C to 110°C

• Tinned copper for corrosion resistance and maximum current flow

• Brazed seam for added strength and durability

• Suitable for marine, automotive, and industrial electrical connections
