Description

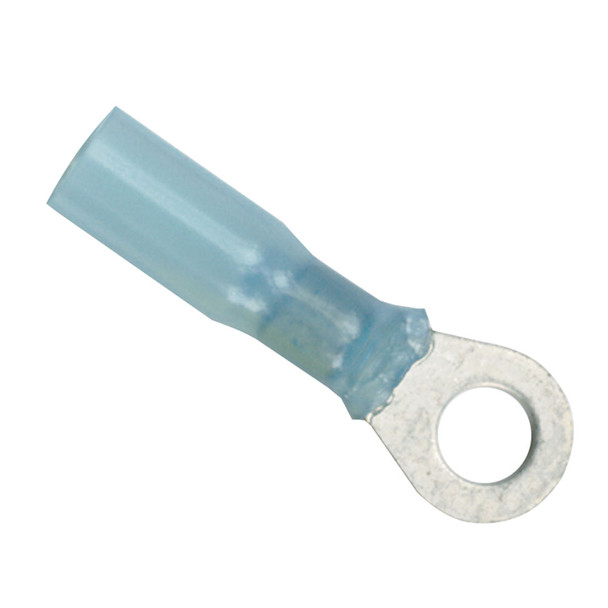

16-14 Gauge - #8 Heat Shrink Ring Terminal - 100-Pack
Gauge Size: 16-14
Screw Size: #8
Quantity: 100
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14
- mm: 1-2
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor Part Number 311299 provides a reliable solution for electrical connections requiring a #8 screw size and compatible with 16-14 gauge wire. These heat shrink ring terminals are engineered with advanced materials to ensure durability and optimal performance in demanding environments. The cross-linked polyolefin tubing used in these terminals is significantly stronger than standard PVC, resisting heat, chemicals, and physical stress while avoiding the risk of burning or melting under high temperatures. The heat-activated adhesive lining creates an impervious seal that protects against saltwater, oil, acids, and sunlight, making them ideal for marine, automotive, and outdoor electrical systems. Each terminal features a nylon insulator, which is preferred by industry professionals for its resistance to sunlight, water, oil, chemicals, vibration, and mechanical damage, ensuring long-term reliability in harsh conditions. These terminals are UL Listed and CSA Recognized, confirming their safety and quality standards. They boast a high shrink ratio, shrinking down to approximately one-third of their original size when exposed to 257°F (125°C), providing a tight, waterproof seal, and strain relief. The pure tinned copper construction enhances corrosion resistance and maximizes current flow, while the brazed seam adds strength to withstand mechanical stresses. Designed for wire ranges from 16 to 14 gauge, these terminals are suitable for various electrical connections requiring secure, moisture-proof, and vibration-resistant terminations. Operating within a temperature range of 40°C to 110°C, they are versatile for many applications. Each pack contains 100 ring terminals, making them a cost-effective and dependable choice for professional wiring projects.
Whether used in marine, automotive, or industrial settings, the Ancor heat shrink ring terminals ensure secure connections with superior strain relief and environmental resistance. Proper installation involves heating the tubing to activate the adhesive, which then forms a water-tight seal around the wire and terminal. This comprehensive design makes them an essential component for any wiring setup that demands durability, safety, and long-lasting performance.
Features:
- Cross-linked polyolefin tubing is stronger than PVC and resists burning
- Heat-activated adhesive lining provides an impervious seal against water, oil, acids, and sunlight
- Nylon insulator offers Marine Grade resistance to sunlight, water, oil, chemicals, vibration, and damage
- UL Listed and CSA Recognized for safety and quality assurance
- Shrinks to approximately one-third of original size at 257°F (125°C) for a secure fit
- Operates effectively within temperature ranges from 40°C to 110°C
- Built-in heat-activated adhesive ensures a water-tight seal and strain relief
- Tinned copper construction enhances corrosion resistance and conducts electrical current efficiently
- Brazed seam provides maximum strength and durability
- Compatible with 16-14 gauge wire for versatile electrical connections
