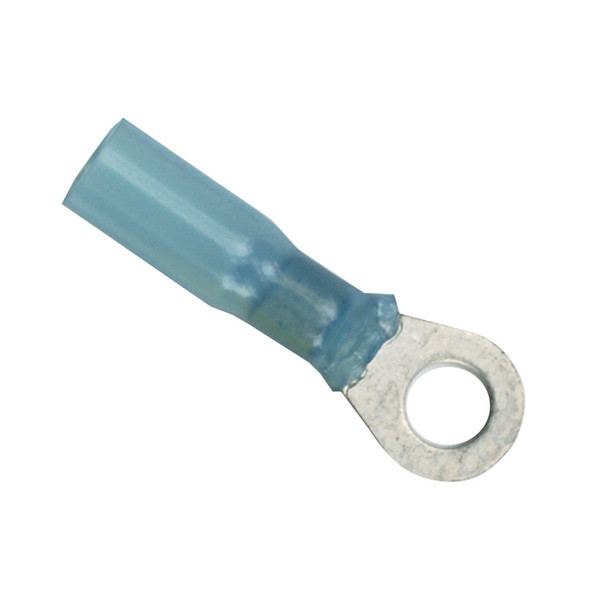

Ancor 16-14 Gauge #8 Heat Shrink Ring Terminal - 25 Pack for Marine and Electrical Applications

16-14 Gauge - #8 Heat Shrink Ring Terminal - 25-Pack

Gauge Size: 16-14
Screw Size: #8
Quantity: 25

Product Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire Range: 16-14




• mm: 1-2



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 gauge #8 heat shrink ring terminal is designed for reliable, high-performance electrical connections in marine, automotive, and industrial environments. Constructed with cross-linked polyolefin tubing, this terminal offers superior strength compared to PVC, ensuring durability under harsh conditions. The heat-activated adhesive lining creates a watertight seal that resists saltwater, oil, acids, and UV exposure, providing long-lasting protection and strain relief for your wiring connections. The nylon insulator, preferred by professionals, offers excellent resistance to sunlight, water, oil, chemicals, vibration, and potential cut-through damage, making it ideal for demanding applications. These terminals are UL Listed and CSA Recognized, confirming their adherence to safety and quality standards.

Features:

• Cross-linked polyolefin tubing provides a stronger, more durable insulation than PVC and resists burning.

• Heat-activated adhesive lining ensures a sealed connection resistant to saltwater, oils, acids, and sunlight, while providing strain relief.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.

• UL Listed and CSA Recognized for safety and quality assurance.

• Highest shrink ratio—shrinks to one-third of original size at 257°F (125°C).

• Operates effectively within a temperature range of 40°C to 110°C (104°F to 230°F).

• Built-in heat-activated adhesive forms a water-tight seal and enhances vibration and strain relief.

• Tinned for corrosion resistance and maximum electrical conductivity.

• Made from pure copper for optimal current flow with a brazed seam for maximum strength.

• Designed to fit wire ranges from 16 to 14 gauge with a #8 screw size.
