Description

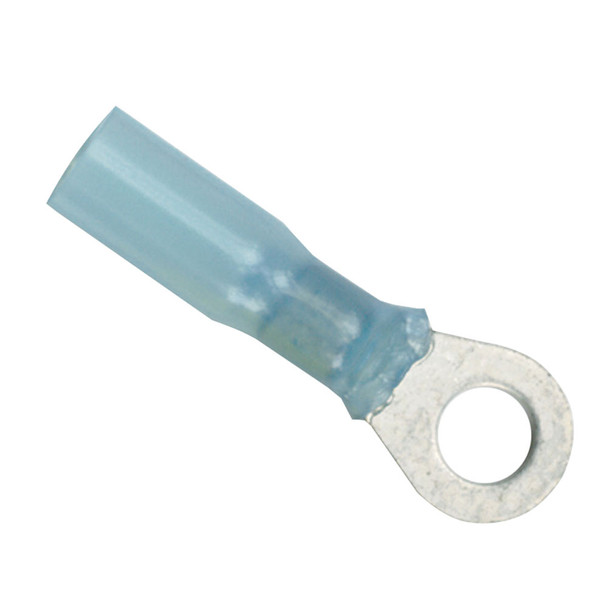

16-14 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack
Gauge Size: 16-14
Screw Size: #8
Quantity: 3
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
- Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size.
- Shrinks at 257 deg. F/125 deg. C.
- Operating temperature range 40 deg. C to 110 deg. C.
- ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief.
- Tinned for corrosion resistance.
- Pure copper for maximum current flow.
- Brazed seam for maximum strength.
- Wire Range: 16-14
- mm: 1-2
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor Part Number 311203 offers a reliable solution for secure electrical connections in demanding environments. These heat shrink ring terminals are designed for wire gauges ranging from 16 to 14 and feature a #8 screw size for versatile compatibility. Constructed with cross linked polyolefin tubing, these terminals are significantly stronger than standard PVC and resist burning or melting when exposed to high temperatures. The heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, ensuring long-lasting protection and strain relief in marine, automotive, and industrial applications. The nylon insulator offers superior resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage, making these terminals ideal for harsh environments. UL listed and CSA recognized standards guarantee safety and quality. These terminals shrink to one-third of their original size when heated to 257°F (125°C), forming a tight, water-proof seal that enhances vibration and strain relief. Tinned for corrosion resistance and made from pure copper, they maximize current flow while the brazed seam ensures maximum strength and durability. Each pack contains three terminals, providing a practical supply for ongoing projects. With an operating temperature range from 40°C to 110°C, these terminals are suitable for various electrical setups requiring dependable and durable connections. Whether for marine wiring, automotive repairs, or industrial wiring, the Ancor heat shrink ring terminals deliver performance, safety, and longevity in a compact and reliable package.
Features:
- Cross linked polyolefin tubing is stronger than PVC and resists burning
- Heat activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight
- Nylon insulator offers marine grade resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage
- UL Listed and CSA Recognized for safety and quality assurance
- Shrinks to one-third of original size at 257°F (125°C) for a secure fit
- Operates effectively within a temperature range of 40°C to 110°C
- Built-in heat activated adhesive creates a waterproof seal and strain relief
- Tinned for enhanced corrosion resistance and maximum current flow
- Made from pure copper for optimal electrical conductivity
- Brazed seam provides maximum strength and durability
- Suitable wire range: 16-14 gauge
