Description

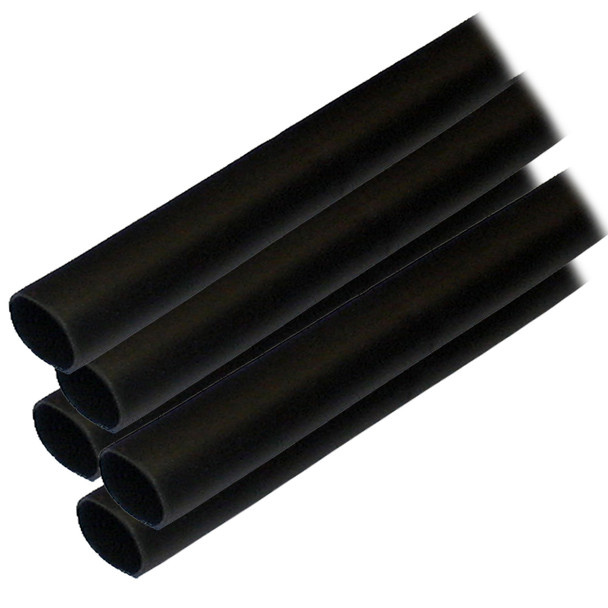

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 6" - 5-Pack - Black
Package of 5 Black 6"(15.2cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)
Wire Range: 8-4 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257F / 125C
- Operating temperature range of -40C to 110C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 305106 adhesive lined heat shrink tubing offers a reliable solution for protecting and insulating electrical connections. Each pack includes five black sections, each measuring 6 inches in length with a 1/2 inch diameter that shrinks down to 5/32 inch, making it ideal for various wiring applications. Designed to accommodate wire ranges from 8 to 4 AWG, this tubing provides a secure and durable cover for your electrical needs. The cross-linked polyolefin construction ensures greater strength compared to PVC tubing and eliminates the risk of burning during installation, enhancing safety and longevity. The heat-activated adhesive lining creates an impervious seal against salt water, oils, acids, and sunlight, while also providing strain relief to prevent wire damage over time. With a high shrink ratio—shrinking to one-third of its original size—this tubing ensures a tight fit around irregular shapes or bundle groups. It shrinks at a temperature of 257°F (125°C) and maintains operational integrity across a temperature range from -40°C to 110°C, making it suitable for demanding environments. Compliant with UL 224 standards, the Ancor heat shrink tubing is a dependable choice for marine, automotive, and industrial applications where durability and environmental resistance are critical. Note that this product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized for potential health risks in California, and users should review safety information accordingly.
Features:
- Cross-linked polyolefin tubing is stronger than PVC and resistant to burning
- Heat-activated adhesive lining provides an impervious seal against salt water, oils, acids, and sunlight
- Shrinks to one-third of its original size for a secure fit
- Shrinks at 257°F (125°C) for quick installation
- Operates effectively within a temperature range of -40°C to 110°C (-40°F to 230°F)
- UL 224 certified for safety and reliability
