Description

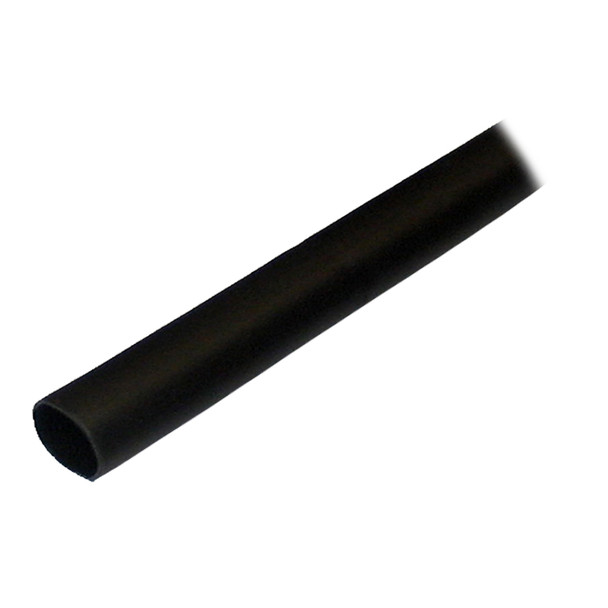

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 48" - 1-Pack - Black
Package of 1 Black 48"(122cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)
Wire Range: 8-4 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257F / 125C
- Operating temperature range of -40C to 110C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 305148 Adhesive Lined Heat Shrink Tubing offers a reliable solution for electrical insulation and protection. This 1/2 inch diameter tubing extends 48 inches in length, providing ample coverage for various wiring applications. Designed to shrink down to 5/32 inch, it ensures a secure fit around wires ranging from 8 to 4 AWG, making it suitable for a wide range of electrical projects. The cross-linked polyolefin material used in this tubing is significantly stronger than standard PVC and does not burn like PVC, ensuring enhanced safety and durability in demanding environments. The heat-activated adhesive lining creates an impervious seal that resists salt water, oil, acids, and sunlight, while also providing strain relief to prevent wire damage over time. With a high shrink ratio of 3:1, this tubing shrinks uniformly at 257°F (125°C), allowing for quick installation and a tight, protective fit. Operating effectively within a temperature range of -40°C to 110°C, it is suitable for both indoor and outdoor applications. UL 224 certification confirms its compliance with safety standards, making it a trusted choice for professional and DIY electrical work. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are recognized to pose health risks under California law. For safety information, visit P65Warnings.ca.gov. The package includes one black heat shrink tube, designed to deliver long-lasting protection and reliable performance in various harsh environments.
Features:
- Cross-linked polyolefin tubing is stronger and more durable than PVC and does not burn like PVC
- Heat-activated adhesive lining provides an impervious seal against salt water, oil, acids, and sunlight, along with strain relief
- Highest shrink ratio, shrinking to one-third of its original size for a tight fit
- Shrinks at 257°F (125°C) for quick and easy installation
- Operates within a temperature range of -40°C to 110°C, suitable for diverse environments
- UL 224 certified, ensuring compliance with safety standards
