Description

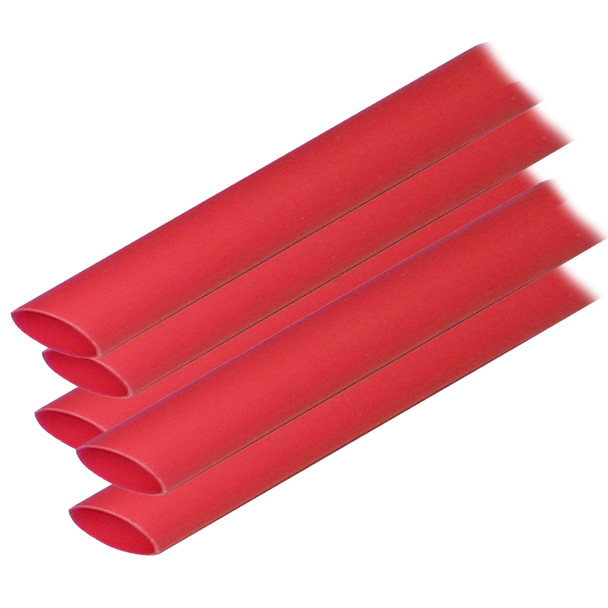

Adhesive Lined Heat Shrink Tubing (ALT) - 1/2" x 12" - 5-Pack - Red
Package of 5 Red 12"(30.5cm) long sections with a 1/2"(12.7mm) diameter that shrinks to 5/32"(4mm)
Wire Range: 8-4 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257F / 125C
- Operating temperature range of -40C to 110C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Ancor 305624 Adhesive Lined Heat Shrink Tubing offers a reliable solution for protecting and insulating wires in various applications. This 5-pack includes sections of red tubing, each measuring 12 inches in length with a 1/2 inch diameter that shrinks down to 5/32 inch when activated. Designed to fit wire ranges from 8 to 4 AWG, this tubing provides a snug, secure fit for a variety of wiring needs. Its cross-linked polyolefin construction is significantly stronger than standard PVC tubing and does not burn like PVC, ensuring durability and safety in demanding environments. The heat-activated adhesive lining creates an impervious seal that resists salt water, oil, acids, and sunlight, while also providing strain relief to protect connections from mechanical stress. The tubing exhibits a high shrink ratio, reducing to one-third of its original size at 257°F (125°C), and can operate effectively within a temperature range of -40°C to 110°C, making it suitable for both automotive and marine applications. UL 224 certified, this heat shrink tubing meets stringent safety standards, ensuring peace of mind during installation and use. The product’s robust design and adhesive lining make it ideal for sealing and insulating wiring in harsh conditions, preventing corrosion and mechanical damage. Whether used for repair, maintenance, or new installations, Ancor’s heat shrink tubing delivers dependable performance and long-lasting protection for your electrical systems.
Features:
- Cross-linked polyolefin tubing is stronger than PVC and resistant to burning
- Heat-activated adhesive lining provides a waterproof seal and strain relief
- Shrinks to one-third of original size for a secure fit
- Activates at 257°F (125°C) for reliable shrinking
- Operates within a temperature range of -40°C to 110°C for versatile use
- UL 224 certified for safety and quality
