Description

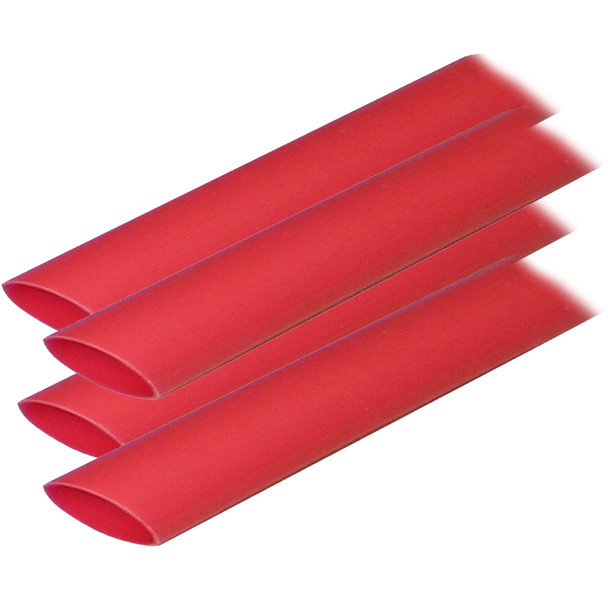

Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 12" - 4-Pack - Red
Package of 4 Red 12"(30.5cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)
Wire Range: 8-2/0 AWG
Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257F / 125C
- Operating temperature range of -40C to 110C
- UL 224
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Designed for reliable wire protection and insulation, the Ancor Adhesive Lined Heat Shrink Tubing provides a durable and secure solution for various electrical applications. Each package includes four 12-inch sections of high-quality red tubing with a 3/4-inch diameter that shrinks down to approximately 1/4 inch, ensuring a tight fit around wires and cables. This heat shrink tubing is suitable for wire ranges from 8 to 2/0 AWG, making it versatile for different sizes of electrical conductors.
Polyolefin material used in this tubing is cross-linked, offering superior strength compared to traditional PVC options. Unlike PVC, this tubing will not burn or emit harmful fumes when exposed to high temperatures. Its heat-activated adhesive lining creates an impervious seal against moisture, saltwater, oils, acids, and UV exposure, providing excellent environmental resistance and strain relief for cable assemblies. The tubing features the highest shrink ratio in its class, shrinking to approximately one-third of its original diameter when heated to 257°F (125°C). This ensures a snug and secure fit that maintains integrity under demanding conditions.
The operating temperature range spans from -40°C to 110°C (-40°F to 230°F), making it suitable for a variety of outdoor and marine environments. UL 224 certification guarantees compliance with safety standards, ensuring reliable performance in critical applications. Whether used in marine, automotive, or industrial wiring projects, this heat shrink tubing offers a professional-grade solution for insulation, protection, and strain relief.
Note: This product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which is recognized by California law as potentially causing reproductive harm. For detailed safety information, visit P65Warnings.ca.gov.
Features:
- Cross-linked polyolefin tubing provides superior strength and durability compared to PVC
- Heat-activated adhesive lining ensures an impervious seal against moisture, saltwater, oils, acids, and sunlight
- High shrink ratio allows tubing to shrink to approximately one-third of its original size
- Shrinks at 257°F (125°C) for a secure fit
- Operating temperature range from -40°C to 110°C (-40°F to 230°F)
- UL 224 certified for safety and reliability
