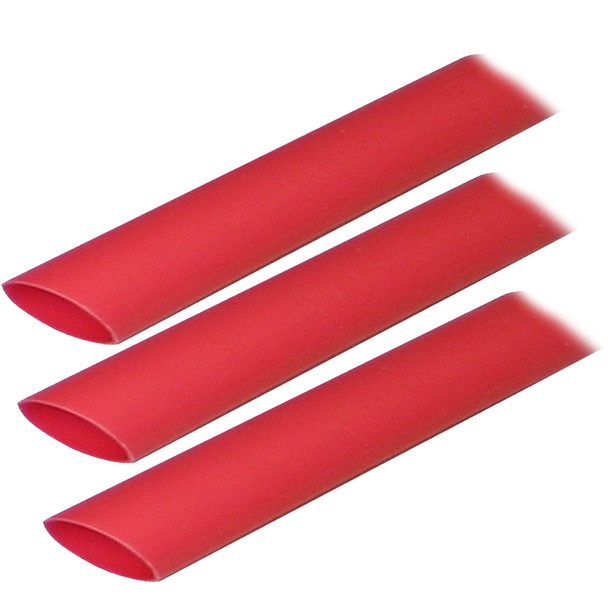

Ancor Adhesive Lined Heat Shrink Tubing 3/4 inch x 3 inches, 3-Pack - Red

Adhesive Lined Heat Shrink Tubing (ALT) - 3/4" x 3" - 3-Pack - Red

Package of 3 Red 3"(7.6cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)

Wire Range: 8-2/0 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This package includes three sections of Ancor's high-quality adhesive-lined heat shrink tubing, each measuring 3 inches in length with a 3/4 inch diameter that shrinks down to 1/4 inch. Designed for reliable insulation and protection, these tubes are suitable for wire ranges from 8 to 2/0 AWG, making them versatile for various applications. The cross-linked polyolefin material used in this tubing offers superior strength compared to PVC and does not burn, ensuring safety during installation. The heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight, while also offering strain relief for wire connections. The tubing features a high shrink ratio, reducing to one-third of its original size when heated to 257°F (125°C). Its operating temperature range extends from -40°C to 110°C, making it suitable for demanding environments. Certified under UL 224, this heat shrink tubing meets safety standards for electrical insulation and protection. Ideal for marine, automotive, and industrial wiring projects, it ensures long-lasting performance and durability. The package's compact design makes it easy to handle and install in tight spaces, providing a dependable solution for wire management needs. Trust Ancor's quality to deliver secure, weather-resistant insulation for your electrical connections, safeguarding your equipment and enhancing system reliability.

Features:

• Cross-linked polyolefin tubing is stronger than PVC and resistant to burning

• Heat-activated adhesive lining provides an impervious seal to various environmental factors and strain relief

• Highest shrink ratio—shrinks to one-third of original size

• Shrinks at 257°F (125°C) for quick and efficient installation

• Operating temperature range from -40°C to 110°C ensures reliability in demanding conditions

• UL 224 certified for safety and quality assurance
