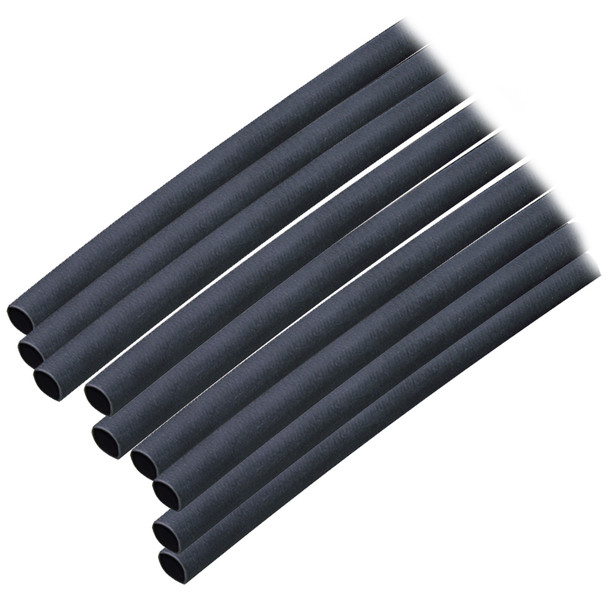

Ancor Adhesive Lined Heat Shrink Tubing (ALT) - 3/16 inch x 6 inch - Black (10-Pack)

Adhesive Lined Heat Shrink Tubing (ALT) - 3/16" x 6" - 10-Pack - Black

Package of 10 Black 6"(15.2cm) long sections with a 3/16"(4.8mm) diameter that shrinks to 1/16"(1.6mm)

Wire Range: 20-12 AWG

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and
  will not burn like PVC




• Heat activated adhesive lining provides impervious seal to salt water,
  oil, acids, and sunlight as well as providing strain relief




• Highest shrink ratio - shrinks to 1/3 original size




• Shrinks at 257F / 125C




• Operating temperature range of -40C to 110C




• UL 224

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This pack includes ten 6-inch sections of Ancor's high-quality adhesive lined heat shrink tubing, designed for reliable electrical insulation and protection. Each piece has an initial diameter of 3/16 inch and shrinks down to 1/16 inch, providing a secure fit over wires and cables. Suitable for wire ranges from 20 to 12 AWG, these tubes are ideal for automotive, marine, and industrial applications where durability and environmental resistance are essential. The cross-linked polyolefin construction offers significantly greater strength than PVC tubing and does not burn like PVC, ensuring safer operation under high temperatures. The heat-activated adhesive lining creates an impervious seal against saltwater, oil, acids, and UV exposure, while also providing strain relief to prevent wire damage. The tubes shrink to one-third of their original size when heated to 257°F (125°C), enabling a tight, professional finish. With an operating temperature range from -40°C to 110°C, these heat shrink tubes are versatile and reliable in harsh conditions, meeting UL 224 standards for safety and performance. Whether used in electrical repairs or new installations, Ancor's heat shrink tubing ensures long-lasting protection and insulation for a variety of wiring projects.

Features:

• Cross-linked polyolefin tubing offers superior strength and durability compared to PVC

• Heat-activated adhesive lining provides an impervious seal against saltwater, oil, acids, and sunlight

• Highest shrink ratio, reducing to one-third of original size for a secure fit

• Shrinks uniformly at 257°F (125°C) for consistent application

• Suitable for wire sizes from 20 to 12 AWG

• Operating temperature range from -40°C to 110°C for versatile use

• UL 224 approved for safety and quality
