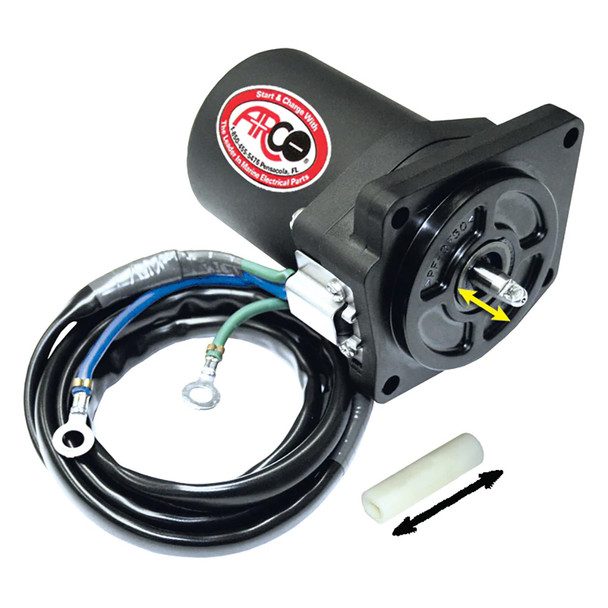

ARCO Marine Replacement Outboard Tilt Trim Motor for Yamaha 75 HP & 90 HP 4-Stroke (Part #6258)

Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt, 5/8" Flat Blade Shaft

Replacement outboard tilt trim motor that will fit Yamaha 2005-UP 75 HP 4 Stroke, 2005-UP 90 HP 4 Stroke, 2-wire connection, 4-bolt mount, Includes O-ring Coupler, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance


• Motor shafts induction case hardened at bearing surfaces for superior wear resistance


• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 6D8-43880-00
YAMAHA Tilt Trim Motor 6D8-43880-01
YAMAHA Tilt Trim Motor 6D8-43880-09

The ARCO Marine Replacement Outboard Tilt Trim Motor is designed specifically for Yamaha outboards from 2005 and onwards, including models with 75 HP and 90 HP 4-stroke engines. This robust motor features a 4-bolt mounting system and a 5/8-inch flat blade shaft, ensuring a secure fit and reliable performance. Constructed with high-quality materials, the motor shaft is induction case hardened at the bearing surfaces for enhanced wear resistance, which prolongs service life under demanding conditions. The epoxy powder coating provides maximum insulation protection, safeguarding against corrosion and environmental damage, making it suitable for both freshwater and saltwater applications.

Features:

• Dynamically tested to ensure reliable performance straight out of the box

• Motor shafts with induction case hardened bearing surfaces for superior durability

• Epoxy powder coated for maximum insulation and corrosion resistance
