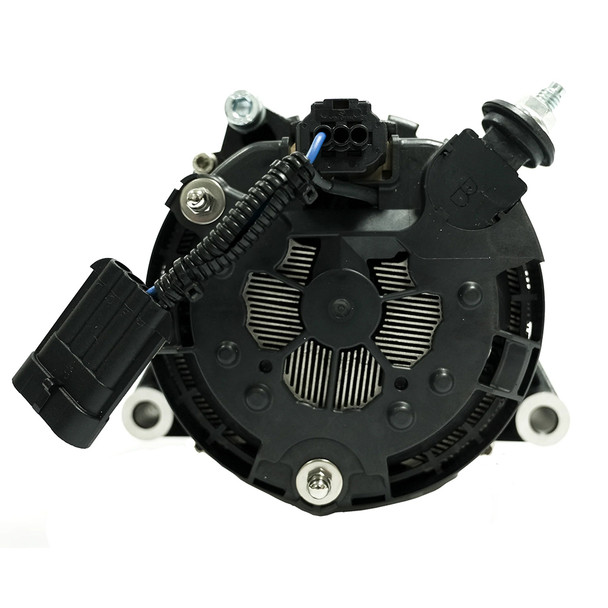

ARCO Marine Zeus 24V 4kW Low Turn On (LTO) N62 Alternator with Clutch Pulley

Zeus 24V 4kW Low Turn On (LTO) N62 Alternator with Clutch Pulley

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at cruising speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,072 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO


• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements.

The ARCO Marine Zeus 24V 4kW Low Turn On (LTO) N62 alternator is engineered for high performance and reliable power generation in marine, RV, military, and commercial applications. Designed to activate at lower RPMs, this alternator delivers over 1.4kW (51 Amps) at just under 1,500 RPM and nearly 2.4kW (87 Amps) at 2,000 RPM, enabling efficient charging even during engine idling. By harnessing a native 24V rotor and field current, the Zeus alternator operates cooler and lasts longer compared to competitors that utilize less efficient 12V field systems. This design choice significantly enhances durability and reduces thermal stress during operation. Its robust construction includes heat shedding coatings, dual cooling fans, and an external rectifier, all contributing to optimal thermal management and sustained high output. The alternator's large frame size and high-quality OEM components make it suitable for demanding environments where consistent power is critical. Its advanced features, such as the E-Coat/Cerakote finish, ensure heat dissipation and corrosion resistance, while the M8 side-mount battery post allows for straightforward installation. The Zeus alternator meets SAE J1171 certification standards, ensuring compliance with industry safety and performance benchmarks. Its technical specifications include a regulation system designed for external regulation, a maximum RPM of 19,000, and an idle cut-in at approximately 1,072 RPM, making it a versatile choice for various engine setups. When paired with the ARCO Zeus Bluetooth Alternator Regulator, it can achieve peak performance and optimal lithium battery charging. Ideal for replacing factory dual alternators on many Sprinter RVs, including those by Roadtrek, Thor, and Winnebago, this alternator is proudly made in the USA, guaranteeing quality and craftsmanship. Whether used for high energy production or as part of a comprehensive power management system, the ARCO Zeus 24V 4kW alternator offers unmatched efficiency, cooler operation, and long-term reliability in demanding applications.

Features:

• Engineered for high energy production and efficient power output

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks for dependable power

• Operates cooler with heat shedding coatings and dual cooling fans

• Rectifier located externally for easier maintenance and enhanced cooling

• Built with OEM components for durability and high performance

• Optimized for performance at cruising speeds

• Reduces generator dependency by generating additional power through engine operation

• Unleash peak performance with E-Coat/Cerakote coating for heat dissipation

• Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum efficiency

• SAE J1171 certified for safety and industry compliance

• Made in the USA with high-quality manufacturing standards
