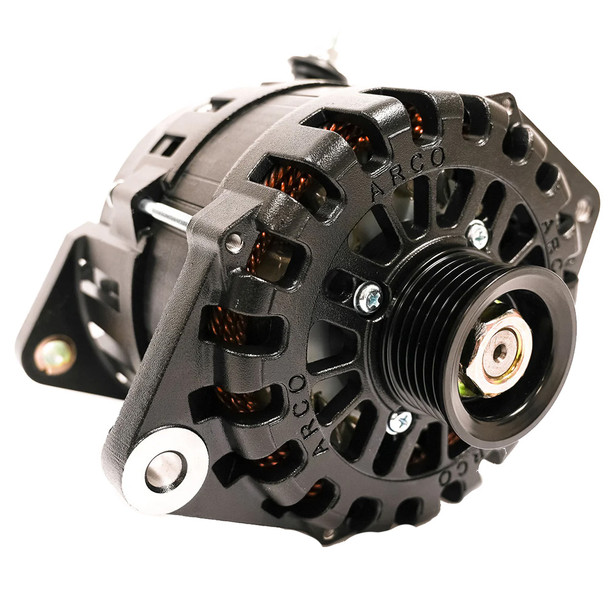

ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator with Isolated Ground

Zeus A8000-48V 8kW 3.15 Alternator with Isolated Ground

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,920 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO


• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most small case styles using a 3.15 J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars.

The ARCO Marine Zeus A8000-48V alternator is engineered to deliver high power output while maintaining optimal efficiency and cooling. Designed for demanding marine, RV, military, and commercial applications, this alternator provides continuous power generation of over 3,000 watts at just 2,500 RPM, reaching nearly 6,000 watts at 4,000 RPM. The alternator's ability to produce substantial power at lower engine speeds reduces the need for additional power sources, making it ideal for large battery banks and energy-intensive systems. Its efficient design and high-current output facilitate rapid charging and reliable operation, even in challenging conditions.

Unlike many competitors that utilize 12V rotors for 48V systems—limiting efficiency and output—the ARCO Zeus features a native 48V rotor and field current design. This results in a cooler running alternator, extending its lifespan and ensuring consistent performance. The unit incorporates heat shedding coatings, dual cooling fans, and an external rectifier housing to optimize thermal management. Its robust construction uses OEM components and is finished with a durable black E-coating for corrosion resistance. The alternator is also compatible with the ARCO Bluetooth Alternator Regulator, allowing for maximum performance tuning and lithium battery management.

Designed for ease of installation and operation, the ARCO Zeus A8000-48V replaces most small case styles using a 3.15 J180 saddle mount, including units from Hitachi, Lucas, Mitsubishi, and most Yanmar models. Its high amperage ratings—up to 180 amps at cold start—ensure reliable operation under heavy loads. The alternator's regulation is external, and it features a M8 side-mount battery post, a standard 49mm six-groove pulley, and M17 threaded shaft for versatile mounting options. With a maximum operating temperature of 212°F and a high starting RPM of 1,920, this alternator is built for durability and consistent high performance in demanding environments.

Features:

• Engineered for high energy production with continuous power output over 3kW at low RPM

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks, reducing reliance on generators

• Designed for cool operation with heat shedding coatings, dual cooling fans, and exterior rectifier

• Uses OEM components and features a durable black E-coating finish

• Optimized for performance at idle speeds and high RPMs

• Includes Bluetooth compatibility for advanced regulation and lithium battery charging

• SAE J1171 certified for quality and safety

• Replaces most small case alternators with 3.15 J180 saddle mount

• Built in the USA for reliable, professional-grade performance
