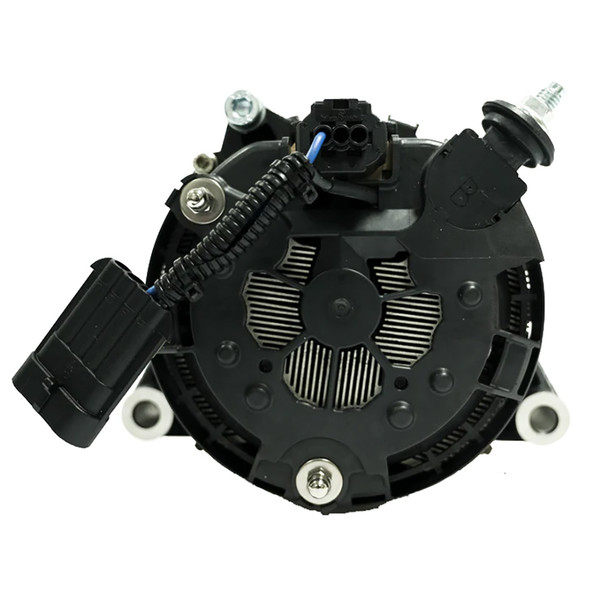

ARCO Marine Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley for Marine and RV Applications

Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,920 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO


• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. For all Mercedes Sprinter applications with the N62 option. Meets current Mercedes Upfitter weight and PTO requirements.

The ARCO Marine Zeus A8000-48V alternator is engineered for high-performance energy generation in marine, RV, military, and commercial applications. This 48V alternator features a native 48V rotor and field current, enabling it to turn on at lower RPMs, operate cooler, and deliver more power compared to larger, heavier competitors. With a continuous output exceeding 3kW at 2,500 RPM and nearly 6kW at 4,000 RPM, it efficiently charges large battery banks and reduces reliance on generators, enhancing overall system efficiency. Its design ensures optimal performance at idle speeds, making it ideal for applications like marine engines and RVs where engine speeds vary. The unit’s robust construction includes heat-shedding coatings, an exterior rectifier, dual cooling fans, and high-quality OEM components, all contributing to increased durability and lifespan. The alternator is equipped with a 49mm, 6-groove pulley and M8 side mount posts, ensuring compatibility with various mounting setups. Certified to SAE J1171 standards and proudly manufactured in the USA, it is a reliable choice for demanding environments. Integrated features such as E-Coat/Cerakote finish help keep the alternator cool during high output, while optional Bluetooth regulator compatibility allows for maximum performance and lithium battery charging. The unit’s maximum open RPM is 19,000, with a cut-in at 1,920 RPM, making it suitable for a broad range of engine configurations. The ARCO Zeus A8000-48V is an efficient, durable, and versatile alternator designed to meet the needs of professionals seeking dependable power solutions for their marine and mobile applications.

Features:

• Engineered for high energy production with over 3kW continuous output

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks with high efficiency

• Coolest operating temperatures due to heat shedding coatings and dual cooling fans

• Exterior-mounted rectifier for enhanced cooling and durability

• OEM components for reliable performance and longevity

• Optimized for performance at idle speeds to reduce engine load

• Reduces the need for a separate generator by generating additional power with your engine

• High amperage output at various RPMs for versatile power management

• Use with ARCO Bluetooth Alternator Regulator for maximum performance and lithium battery charging

• Certified to SAE J1171 standards, ensuring quality and safety

• Proudly made in the USA for quality assurance
