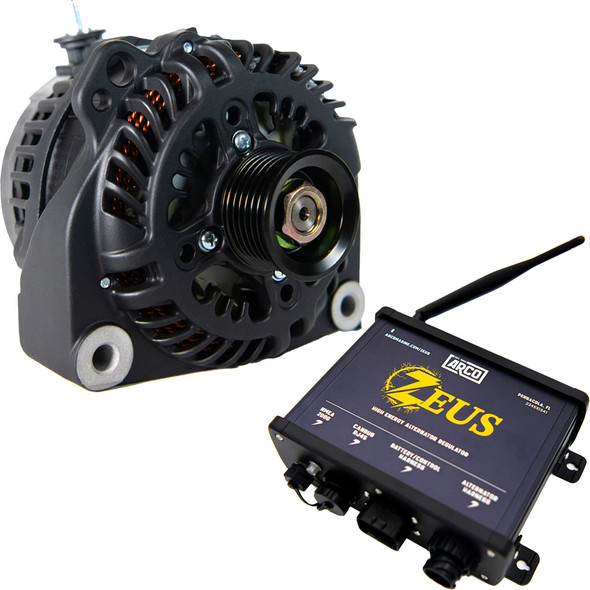

ARCO Marine Zeus A8000-48V 8kW Vortec Alternator with Case Ground

Zeus A8000-48V 8kW Vortec Alternator with Case Ground

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,920 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO


• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces Mando type alternators using Vortec/GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines).

The ARCO Marine Zeus A8000-48V alternator delivers superior power output and efficient operation for marine, RV, military, and commercial applications. Engineered with a native 48V rotor and field current, this alternator starts generating significant power at lower RPMs, making it ideal for use with various engine types. Its design ensures the alternator runs cooler than many competitors, which extends its lifespan and enhances reliability. Capable of producing over 3kW (55 Amps) at 2,500 RPM and nearly 6kW (111 Amps) at 4,000 RPM, the Zeus A8000-48V is perfect for rapidly charging large battery banks and reducing dependence on traditional generators. It seamlessly integrates with existing systems, providing consistent high-performance output even at idle speeds, thanks to its optimized design and advanced cooling features.

Built with OEM components and coated with heat-shedding E-coat/Cerakote, this alternator maintains high amperage output under demanding conditions. The exterior-mounted rectifier and dual cooling fans facilitate efficient heat dissipation, ensuring the unit operates within safe temperature limits. Its robust construction and premium materials contribute to long-term durability, while compliance with SAE J1171 standards guarantees quality and safety. The alternator's mounting configuration replaces Mando-type alternators and fits many marine engines, including those from Mercruiser and Volvo Penta, with Vortec/GM pad mounting feet. This combination of features delivers reliable, high-output performance, making the ARCO Zeus A8000-48V an excellent choice for demanding power generation needs.

Additional features include a 16-pole rotor, large stator size, and a maximum alternator RPM of 19,000, ensuring flexibility and high efficiency across a wide range of operating conditions. The unit's construction includes M8 threaded side-mount battery posts, a standard 6-groove pulley, and hardware for straightforward installation. Its maximum continuous operating temperature is rated at 212°F (100°C), supporting sustained operation under heavy loads. Use the ARCO Zeus Bluetooth Alternator Regulator for enhanced performance and lithium battery charging capabilities, making this alternator a versatile and dependable power source for your marine or mobile energy system.

Features:

• Engineered for high energy production

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks

• Coolest operating temperatures for increased performance, featuring heat shedding coatings

• Exterior-mounted rectifier for improved heat dissipation

• Dual cooling fans for maximum cooling efficiency

• Built with OEM components for durability

• Optimized for high performance at idle speeds

• Reduces reliance on generators by generating additional power from engine RPM

• Utilizes E-Coat/Cerakote for enhanced cooling and sustained amperage output

• Compatible with ARCO Bluetooth Alternator Regulator for maximum performance and lithium battery charging

• SAE J1171 Certified for safety and quality

• Made in the U.S.A.
