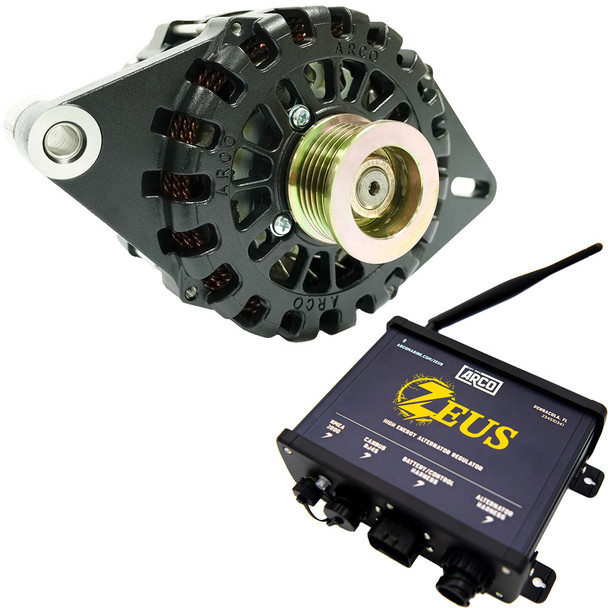

ARCO Zeus 24V 4kW Low Turn On (LTO) Single Foot Alternator with Isolated Ground and High-Energy Regulator

Zeus 24V 4kW Low Turn On (LTO) 1-2 Single Foot Alternator with Isolated Ground Zeus High-Energy Alternator Regulator

Zeus 24V 4kW Low Turn On (LTO) 1-2 Single Foot Alternator with Isolated Ground

The ARCO Zeus 24V 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24V 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current, which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at cruising speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,072 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO


• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most domestic styles using a single 1 or 2 mounting foot (e.g., Motorola, Prestolite).

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus 24V 4kW Low Turn On (LTO) alternator is engineered for high-performance applications, offering lower RPM activation, cooler operation, and increased power output compared to traditional models. This alternator delivers over 1.4kW (51 Amps) at just under 1,500 RPM and approaches 2.4kW (87 Amps) at 2,000 RPM, making it ideal for marine, RV, military, and commercial use. Its design enables efficient energy generation during engine idle, with real-world examples demonstrating significant power output from typical engine speeds. The robust construction and advanced cooling features, including heat-shedding coatings and dual cooling fans, help maintain optimal operating temperatures, extending component lifespan and ensuring sustained performance. Unlike competitors that use a 12V rotor, this model features a native 24V rotor and field current, enhancing efficiency and reducing operating temperatures for increased durability. The alternator's large frame and integrated components are optimized for high energy production, with a standard pulley system compatible with various engine setups. It is engineered to replace most domestic styles with a single or double foot mounting, simplifying installation. The device’s regulation system is external only, and it is SAE J1171 certified, ensuring compliance with industry standards. The alternator's maximum RPM exceeds 19,000, providing a wide operational range, while its lightweight design of less than 16 pounds allows for flexible mounting options. The included hardware and mounting components facilitate straightforward installation. The ARCO Zeus 24V 4kW alternator is complemented by an advanced Bluetooth-enabled regulator, which features a native app for iOS and Android. This regulator allows remote monitoring, configuration, and data logging, enabling users to optimize their energy systems easily. It can read two shunts simultaneously, providing real-time insights into battery and alternator currents and temperatures. The system supports 12-48V systems, is IP66/IP67 rated for water resistance, and comes with a 2-year warranty, making it a reliable choice for demanding environments. In the package, you'll find the high-energy alternator regulator, wiring harnesses, thermistors, and all necessary accessories for a comprehensive power management solution, ensuring maximum efficiency and system longevity.

Features:

• Engineered for high energy production and efficiency

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks at low engine RPMs

• Operates at the coolest temperatures with heat-shedding coatings and exterior-mounted rectifier

• Dual cooling fans provide enhanced thermal management

• Utilizes OEM components for durability and reliability

• Optimized for performance at cruising speeds

• Reduces dependence on generators by generating additional power from engine energy

• High-output capability with sustained and maximum power levels

• Bluetooth-enabled Zeus regulator for remote monitoring and configuration

• Supports 12-48V battery systems, including lithium and lead-acid types

• Includes harnesses, thermistors, and NMEA 2000 kit for seamless integration

• Designed to replace most domestic alternator mounting styles

• Certified to SAE J1171 standards, ensuring industry compliance

• Built in the USA with quality craftsmanship
