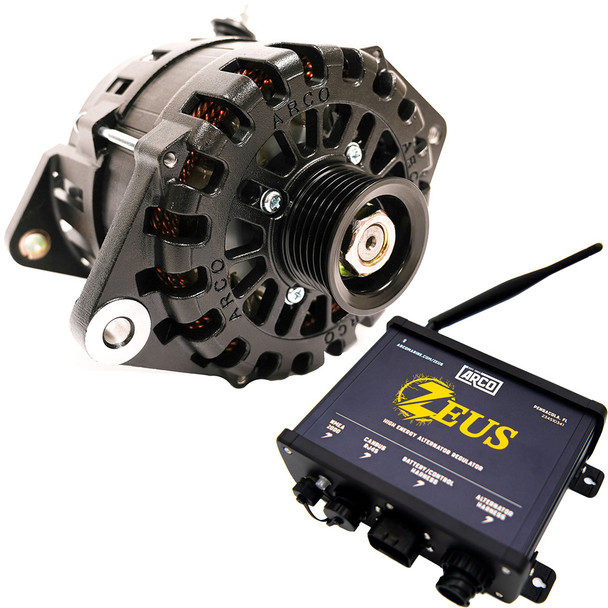

ARCO Zeus 24V 7kW Alternator with Isolated Ground and High-Energy Regulator 4501-AZ1000

Zeus 24V 7kW 3.15 Alternator with Isolated Ground Zeus High-Energy Alternator Regulator

Zeus 24V 7kW 3.15 Alternator with Isolated Ground

The ARCO Zeus 24V 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!

The ARCO Zeus 24V 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitor 24V alternators utilize a 12V rotor and field current, which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor 24V alternators, which directly impacts the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,962 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts 11.2 kW PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts 8.6kW PTO


• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts 2kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most small case styles using a 3.15 J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi), Most Yanmars.

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus 24V 7kW alternator with isolated ground delivers exceptional power output suitable for marine, RV, military, and commercial applications. Capable of generating over 3kW (109 Amps) at just under 3,000 RPM and nearly 6kW (218 Amps) at under 6,000 RPM, this high-performance alternator is designed to meet demanding energy needs efficiently. Its advanced design ensures continuous high amperage production during cruising and higher engine speeds, making it ideal for charging large battery banks quickly and reliably. The alternator's compact and lightweight structure allows for easy installation while providing superior cooling through heat-shedding coatings, dual cooling fans, and an exterior-mounted rectifier, which collectively help maintain optimal operating temperatures and extend component lifespan. Unlike competitor models that use less efficient 12V rotors, ARCO’s native 24V rotor and field current maximize efficiency and reduce heat generation, resulting in cooler operation and longer service life.

Equipped with OEM components and a robust black E-coating finish, the ARCO Zeus alternator is built for durability and performance at idle speeds. It features a large frame size, a 16-pole rotor, and a high-capacity rectifier with avalanche diodes rated for 80A, ensuring reliable power output under various conditions. The alternator includes a standard 49mm, 6-groove pulley with threaded M17 x 1.5 shaft, making it compatible with a wide range of mounting applications, including most small case styles with a 3.15 J180 saddle mount. Its regulation is external, with a cut-in RPM of approximately 1,962 and a maximum alternator RPM of 19,000, allowing for versatile installation and operation.

The ARCO Zeus high-energy alternator regulator enhances system performance through Bluetooth connectivity and a dedicated app compatible with iOS and Android devices. This innovative regulator monitors system charge status, manages multiple shunt inputs, and offers remote data logging and troubleshooting features. Its ability to read both battery and alternator shunts simultaneously enables precise regulation based on real-time current and temperature inputs, optimizing battery health and longevity. The regulator also allows engine power to be managed as a dedicated energy source, enabling the engine to operate as a generator at the push of a button, which accelerates battery recharging when needed. Included with the system are harnesses, thermistors, and NMEA 2000 kit, ensuring straightforward installation and integration. Certified to SAE J1171 standards and manufactured in the USA, the ARCO Zeus 24V alternator and regulator set is a reliable, high-performance solution for demanding power needs.

Features:

• Engineered for high energy production and efficiency

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks for quick energy replenishment

• Enhanced cooling with heat-shedding coatings and dual fans for longer lifespan

• Exterior-mounted rectifier for optimal heat dissipation

• Native 24V rotor and field current for superior efficiency and cooler operation

• Compatible with most small case styles using J180 saddle mounts

• Bluetooth-enabled Zeus High-Energy Alternator Regulator with app control

• Monitors system charge, manages multiple shunts, and logs data remotely

• Supports 12-48V systems with pre-set battery libraries

• Can convert your engine into a dedicated generator with generator mode

• Includes harnesses, thermistors, and NMEA 2000 kit for simplified installation

• Certified SAE J1171 and manufactured in the USA
