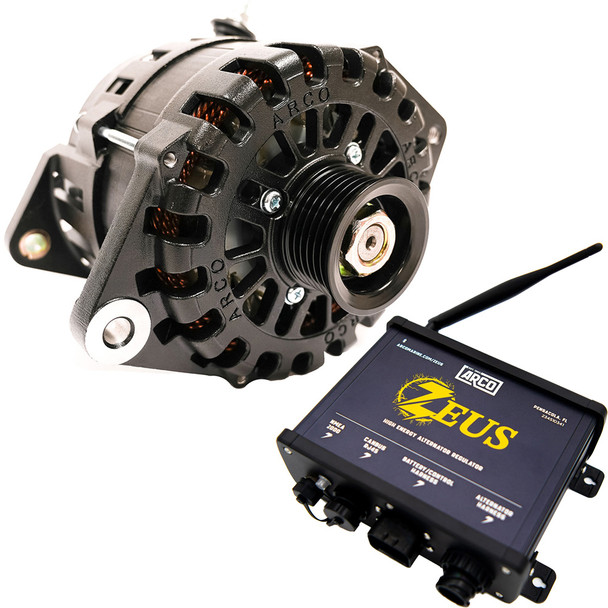

ARCO Zeus A225S 1-2 Inch Alternator with Terminal Block and High-Energy Regulator

Zeus A225S 1-2 Alternator with Terminal Block Zeus High-Energy Alternator Regulator

Zeus A225S 1-2 Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.


• Suitable for Marine, RV, Military, and Commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM Components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.


• For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 130mm


• Frame Size - Small


• Weight - 12lbs/6.7kg


• Regulation - External Only


• Output Voltage - 14.1V (default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 254 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps

Mounting Application:

• Replaces most domestic styles using a single 1 or 2 mounting foot (e.g., Motorola, Prestolite).

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus A225S 1-2 inch alternator is engineered for high energy production, making it the most powerful option in its class. Featuring a compact frame and weighing approximately 13 pounds, this alternator is suitable for marine, RV, military, and commercial applications. Its design includes heat-shedding coatings, dual cooling fans, and an exterior-mounted rectifier to operate at cooler temperatures—8 to 20% cooler than traditional alternators—ensuring increased performance and longevity. This robust alternator rapidly charges large battery banks and reduces the need for external generators by generating additional power directly from your engine. Its external regulation and high amperage output make it ideal for demanding energy systems, particularly where lithium or deep-cycle batteries are used.

Features:

• Engineered for high energy production, delivering maximum power output in its size class

• Suitable for marine, RV, military, and commercial applications

• Rapidly charges large battery banks to keep your systems running efficiently

• Operates 8-20% cooler than incumbent alternators due to heat-shedding coatings, exterior rectifier, and dual cooling fans

• Optimized for performance at idle speeds, ensuring consistent power generation

• Reduces reliance on external generators by creating additional power with your engine

• Enhanced durability with advanced Cerakote/E-coat finishes that absorb less heat for sustained amperage

• Compatible with ARCO Zeus Bluetooth regulator for maximum performance and lithium battery charging

• SAE J1171 certified for safety and reliability

• Proudly manufactured in the USA, ensuring quality and standards compliance
