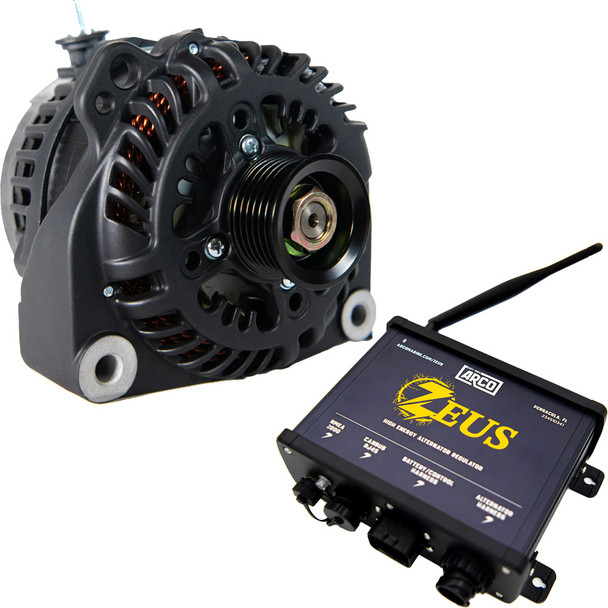

ARCO Zeus A225S Vortec Alternator with Terminal Block and High-Energy Regulator

Zeus A225S Vortec Alternator with Terminal Block Zeus High-Energy Alternator Regulator

Zeus A225S Vortec Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.


• Suitable for Marine, RV, Military, and Commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:


• Heat-shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM Components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods.


• For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 12V


• Field Type - P


• Rotor Poles - 16


• Stator Size - 130mm


• Frame Size - Small


• Weight - 12lbs/6.7kg


• Regulation - External Only


• Output Voltage - 14.1V (default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 254 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps

Mounting Application:

• Replaces Mando type alternators using Vortec/ GM pad mounting feet (Found on many Mercruiser and Volvo Penta 3.0GLM, 3.0GLP, 4.3GXi, 5.7GiL, 5.7GXiL Marine Engines) (GM Blocks)

Zeus High-Energy Alternator Regulator

ARCOs Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.

Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.

Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technicians configurations.

Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.

Zeus also takes into consideration the power of your engine and allows you to configure the alternators power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternators performance on the creation of energy to replenish your battery bank quickly.

Consistent with Zeus ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.

Features:

• Secure Bluetooth connection


• Harnesses, Thermistors, and NMEA 2000 kit included


• Monitors the state of charge


• Can turn your engine into a dedicated generator with generator mode


• Pre-set battery libraries


• Data logging and sharing


• CAN bus and NMEA 2000-integrated networks


• Compatible with all voltage systems (12- 48V)


• IP66 IP67 rated


• 2-Year warranty

Technical Specifications:

• Enclosure dimensions without antenna - 8.2 x 5.9 x 2.4


• Enclosure dimensions with antenna - 8.2 x 7.5 x 2.4


• Weight - 1.7 lbs

In the Box:

• Zeus high-energy alternator regulator


• Battery wiring harness


• Alternator wiring harness


• 2 thermistors

The ARCO Zeus A225S Vortec Alternator is designed to deliver the highest power output within its size and class, making it an ideal choice for marine, RV, military, and commercial applications. This alternator features a robust 12V system with a compact frame, weighing approximately 12 pounds, and is engineered to rapidly charge large battery banks while maintaining cool operating temperatures. Its heat-shedding coatings, exterior-mounted rectifier, and dual cooling fans work together to ensure the alternator runs 8 to 20% cooler than comparable models, enhancing durability and performance. The A225S is optimized for performance at idle speeds and is capable of producing a maximum of 254 amps at cold RPMs, with sustained hot RPM outputs of up to 187 amps, ensuring reliable power delivery even during demanding use. This alternator replaces Mando type units using Vortec/GM pad mounting feet, commonly found on many Mercruiser and Volvo Penta marine engines, making installation straightforward. Built with OEM components and finished with Cerakote or E-coating, it offers durability and resistance to harsh environments. The unit includes a 49mm multi-groove pulley and a side-mount M8 threaded post for versatile mounting options. Designed for maximum efficiency, the alternator features a 16-pole rotor, 130mm stator, and Avalanche-rated diodes rated at 50A, ensuring high performance and longevity. The alternator regulation is external only, providing precise control over charging parameters. This model is SAE J1171 certified and proudly manufactured in the U.S.A., reflecting quality and reliability. For enhanced output and system management, the A225S works seamlessly with the ARCO Zeus Bluetooth alternator regulator, which offers advanced features such as remote monitoring, data logging, and the ability to turn your engine into a dedicated generator with the press of a button. The regulator’s Bluetooth connectivity allows for easy setup and configuration via an intuitive iOS or Android app, with the ability to read multiple shunts for comprehensive system monitoring. The package includes harnesses, thermistors, and NMEA 2000 kit, ensuring compatibility with various system architectures. With features like pre-set battery libraries, generator mode, and remote troubleshooting capabilities, the ARCO Zeus regulator enhances your energy system’s efficiency and safety. Built to withstand harsh conditions with IP66/IP67 ratings, it comes with a 2-year warranty, offering peace of mind for demanding applications.

Features:

• High power output with maximum 254 amps at cold RPM for demanding applications

• Engineered for high energy production with heat-shedding coatings and dual cooling fans

• Suitable for marine, RV, military, and commercial use with OEM component quality

• Optimized for performance at idle speeds, reducing engine load

• Advanced Zeus Bluetooth regulator with remote monitoring, data logging, and system configuration

• Can turn engine into a dedicated generator with generator mode

• Includes harnesses, thermistors, and NMEA 2000 kit for system integration

• Compatible with 12 to 48-volt systems, supporting lithium and lead-acid batteries

• Durable finish with Cerakote or E-coating for harsh environment resistance

• SAE J1171 certified, made in the USA, with a 2-year warranty
