Description

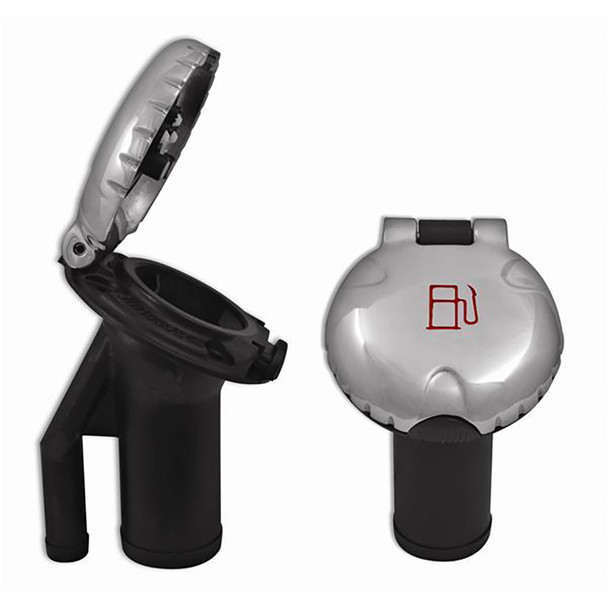

Deck Fill for Pressure Relief Systems - Angled Body Scalloped Stainless Steel Cap
Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.
Features:
- Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
- Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
- Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
- Automatic nozzle shutoff 4-18 gpm
- Stainless Steel finish
- An essential component of VaporTec and SecureStop
- Designed and tested to prevent water from entering the fuel system
- EPA / CARB Certified
- Hinged audible click cap meets EPA requirements
- Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
*Compatible with Ethanol blended fuels
The Attwood Marine Deck Fill (Part Number: 99DFPVAS1S) is a high-performance component designed for reliable fuel tank venting and pressure relief in marine applications. Crafted with a durable stainless steel finish, this deck fill features an angled body and a scalloped cap that ensure a secure seal and ease of use during refueling. The system integrates automatic diurnal emission control and overpressure safety valves, which are engineered to release pressure above 1 psi, thereby preventing tank overpressure and ensuring safety. Its high-flow vacuum valves facilitate maximum airflow, supporting high horsepower engines and preventing fuel spit-back or well-back, making it ideal for demanding marine environments.
This deck fill is compatible with 1-1/2 inch fill hoses and 5/8 inch vent hoses, providing a versatile and secure connection for fuel delivery and venting. The dual 1 psi safety valves embedded within the cap help maintain proper tank pressure and emissions compliance. The automatic nozzle shutoff feature, operating at 4-18 gallons per minute, optimizes refueling efficiency and safety. Designed to prevent water ingress, the system ensures that contaminants do not enter the fuel tank, thus protecting engine performance and longevity. Additionally, the deck fill meets EPA and CARB certification standards, including CARB 13 CCR 2235 and ISO 13331, ensuring compliance with environmental regulations. The hinged cap features an audible click to confirm proper closure, providing peace of mind during refueling. Suitable for ethanol-blended fuels, this component is essential for marine vessels requiring reliable, regulated pressure relief and venting solutions that enhance safety and environmental compliance.
Overall, the Attwood Marine Deck Fill for Pressure Relief Systems offers robust construction, precise engineering, and compliance with industry standards, making it a critical part of any marine fuel system setup. Its compatibility with vapor control systems like VaporTec and SecureStop further enhances its functionality, ensuring safe and environmentally responsible operation in marine environments.
Features:
- Fits 1-1/2 inch fill hose and 5/8 inch vent hose
- Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high horsepower applications)
- Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
- Automatic nozzle shutoff at 4-18 gallons per minute
- Stainless steel finish for durability and corrosion resistance
- Compatible with VaporTec and SecureStop systems
- Designed and tested to prevent water from entering the fuel system
- EPA and CARB certified for environmental compliance
- Hinged audible click cap meets EPA requirements
- Meets CARB 13 CCR 2235 and ISO 13331 standards
- Compatible with ethanol-blended fuels
