Description

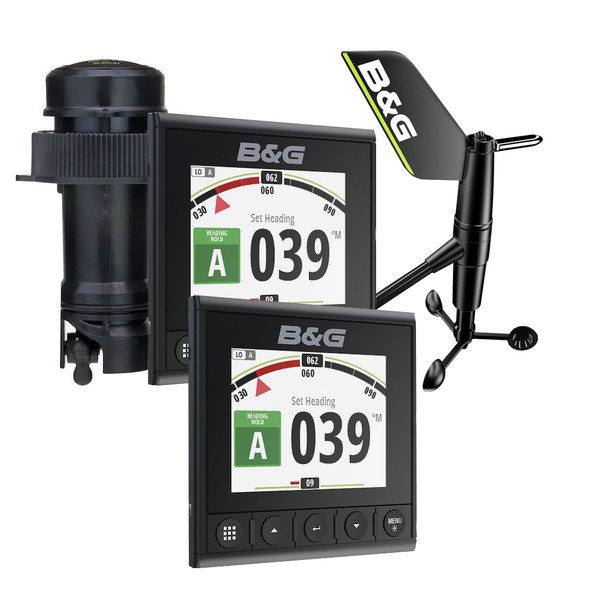

Triton Speed/Depth/Wind System Pack - Wired Wind Pack
The clearest, multi-purpose sailing instrument with dedicated sailing features.
Features:
- Optically bonded 4.1-inch color display
- Transflective LCD technology for optimum sunlight viewing
- Unique sailing features including SailSteer and WindPlot
- Display wind, speed, depth, heading, autopilot status, and much more
- Easy to use, easy to install
- Low power consumption
The full-color Triton Display provides sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data, and more.
An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility day or night while consuming less power than traditional backlight-only displays.
The flexible, NMEA 2000 certified, Triton Display can be integrated into a wider navigation system and also be combined with a Triton Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B G sail-specific autopilot steering algorithms.
Specifications:
- Dimensions: 118 x 115 x 36 mm (4.6 x 4.5 x 1.4")
- Weight: 0.32 kg (0.7 lbs)
- Color: Black
- Display Size: 4.1" (diagonal). 4:3 Aspect ratio
- Display Type: Transflective TFT-LCD, bonded. White LED backlight
- Display Resolution: 320 x 240 pixels
- Illumination: White for day mode. Red, green, blue, or white for night mode
What's in the box
- 000-13294-001 Triton Digital Display.
- 000-15735-001 IDST-810 active D/S/T TH plastic 235 kHz transducer.
- 000-10760-001 2k Backbone Starter Kit
- 000-14391-001 WS310 Wind Sensor
- 000-14396-001 N2K Wind Mast cable 20 m
- 000-14389-001 ws310 wired interface only
The B&G Triton Speed, Depth, and Wind System Pack offers a comprehensive, multi-purpose sailing instrument designed to enhance navigation and sailing performance. Featuring a 4.1-inch optically bonded color display, this system provides clear visibility even in direct sunlight thanks to transflective LCD technology. The high-resolution display (320 x 240 pixels) ensures detailed and crisp presentation of vital sailing data, including wind speed and direction, water depth, vessel heading, autopilot status, and AIS targets. Its robust construction and bonded display prevent fogging and condensation, making it suitable for demanding marine environments. The system is easy to install and operate, with intuitive controls and low power consumption, ideal for both casual sailors and professional mariners. Integration with NMEA 2000 networks facilitates seamless connection with other navigation and autopilot components, enabling a unified control system for enhanced sailing efficiency. The Triton Display can be combined with Triton Pilot keypad and NAC autopilot systems, utilizing B&G’s sail-specific autopilot algorithms for precise steering control under various sailing conditions. The package includes the display, active transducer, backbone starter kit, wind sensor, and necessary cables, providing a ready-to-install marine navigation solution. Its durable, compact design makes it suitable for a variety of vessel sizes, with dimensions that fit comfortably in tight cockpit spaces. Whether used for racing or cruising, this system delivers reliable, real-time data critical for safe and efficient sailing. For detailed installation and operation guidance, the included manual is available online, ensuring users can maximize the system’s capabilities and performance.
Features:
- Optically bonded 4.1-inch color display for excellent sunlight readability
- Transflective TFT-LCD technology providing high contrast in all lighting conditions
- Dedicated sailing features including SailSteer and WindPlot for optimized navigation
- Displays wind, speed, depth, heading, autopilot status, AIS targets, and GPS data
- Easy to install and operate, designed for marine environments
- Low power consumption suitable for extended use on vessels
- NMEA 2000 certified for seamless network integration
- Compatible with Triton Pilot keypad and NAC autopilot for a complete autopilot system
- Compact and durable design ideal for various vessel sizes
Details
truck_freight: |
No |
oversized: |
No |
owners_manual_url: |
https://productimageserver.com/literature/ownersManual/88518OM.pdf |
