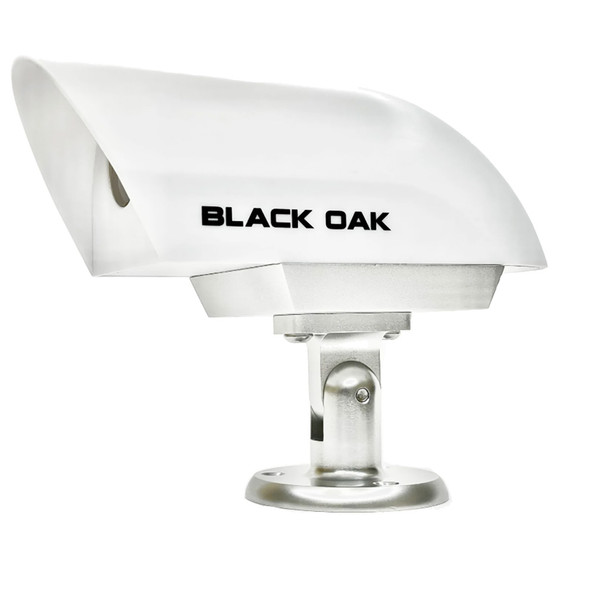

Black Oak Nitron XD Marine Night Vision Camera - White Housing, Standard Mount

Nitron XD Night Vision Camera - White Housing - Standard Mount

The Nitron XD Marine Night Vision Camera displays the highest resolution possible, giving users crystal clear imagery in pitch black darkness. Without relying on thermal temperatures, users will have the perfect HD image in any nighttime condition. Boasting an IP69K rating, the Nitron XD can withstand the harshest environments.

With the ability to connect right into a Garmin, Simrad, Raymarine, or many other monitors, installing Black Oak's marine video camera is practically plug-n-play. With the included cable, plug right into a video input port.

*This version is the standard mount version

Hyper-Low Lux Sensor

Nitron XD was specifically designed to function in complete darkness, providing crystal-clear HD video in any nighttime environment, no matter the ambient temp.

2X The Resolution

See more than just silhouettes; Nitron XD shows details in full HD.

Marine Rated

This Black Oak' camera can withstand heavy spray and handle immersion up to 3 feet for over 60 hours.

Easy Installation

Black Oak includes everything needed to easily install, along with a plug-and-play harness to fully integrate with a MFD.

Plug-N-Play with MFD

Easily connect to a Garmin, Simrad, or other popular MFD with the supplied brand specific video input cable. See why Black Oak is the #1 night vision camera for boating.

Do it at Night

Turn night into day and achieve peace of mind with the ability to see channel markers, boats, buoys, and other hazardous objects.

Built to Last

With Black Oak's military-grade housing, there is no need to worry about this camera withstanding the harsh marine environments. Black Oak's camera is designed to handle any salt, corrosion, humidity, or moisture users throw at it.

Quick Connect

Take advantage of Black Oak's easy-access quick connect harness. With the ability to easily remove or attach, users never have to worry about leaving this camera.

Features:

• .0000025 Lux starlight night vision


• Two field of view options: 20 or 30 degrees


• Streams 752 x 582 HD video


• 60 frames per second


• Marine grade waterproof housing


• Connect directly to a MFD


• Flexible installation (top or bottom mount)


• 12Vdc power (fused)


• NTSC/PAL analog video connection (BNC)


• Manual vertical tilt adjustment


• Marine grade IP69K waterproof housing

Technical Specifications:

• Hyper Low Lux: .0000025


• HD Resolution: 752(H) x 582(V)


• Power Consumption: 1.38 Watts


• Frame Refresh Rate: 60 frames per second


• Noise Reduction: 3DNR


• Length (front to end): 8-3/16


• Height (top to bottom): 6

In the Box:

• Nitron XD Marine Camera System


• 25' quick connect wiring harness


• 5A inline fuse


• Anodized aluminum mounts

*Sold as an Individual

The Black Oak Nitron XD Marine Night Vision Camera is designed to deliver exceptional clarity in complete darkness, making it ideal for marine navigation and safety. Featuring a hyper-low lux sensor with an illumination sensitivity of just .0000025 lux, this camera provides full HD streaming at 752 x 582 resolution with a smooth 60 frames per second. Its advanced night vision capabilities allow boaters to see channel markers, buoys, and potential hazards clearly, even in pitch-black conditions. Constructed with military-grade materials and an IP69K waterproof housing, the Nitron XD is built to withstand harsh marine environments, including salt spray, humidity, and immersion up to 3 feet for over 60 hours. Installation is straightforward with the included quick connect harness and anodized aluminum mounts, compatible with a variety of Multi-Function Displays (MFDs) such as Garmin, Simrad, and Raymarine, enabling a plug-and-play setup.

This camera offers flexible mounting options, allowing users to choose top or bottom installation, and features manual vertical tilt adjustment for optimal viewing angles. The camera’s robust design ensures durability in demanding conditions, making it a reliable addition to any vessel’s safety and navigation system. Its analog NTSC/PAL BNC video output and 12V DC power supply make integration easy, while the two available fields of view—20 or 30 degrees—allow customization based on specific needs. Whether for nighttime navigation or enhanced security, the Nitron XD provides peace of mind with crystal-clear imagery in any lighting condition.

Included with the system are a 25-foot quick connect wiring harness, a 5A inline fuse, and anodized aluminum mounts, making setup quick and efficient. Designed for long-term durability, this camera is engineered to handle the toughest marine environments, ensuring reliable performance over time. For detailed installation instructions, consult the owner’s manual available online. Experience the difference with Black Oak’s Nitron XD Marine Night Vision Camera and enhance your vessel’s safety and situational awareness during nighttime operations.

Features:

• Starlight night vision with .0000025 Lux sensitivity for complete darkness visibility

• HD resolution of 752 x 582 pixels with 60 frames per second streaming

• Marine-grade waterproof housing with IP69K rating withstands harsh conditions

• Flexible installation options, including top or bottom mount with manual vertical tilt

• Plug-and-play compatibility with Garmin, Simrad, Raymarine, and other MFDs using included cables

• Two field of view options: 20 or 30 degrees for customizable viewing angles

• Powered by 12V DC with fused connection for safety and reliability

• Analog NTSC/PAL video output (BNC connection) for seamless integration

• Durable, military-grade design resists salt, humidity, and corrosion

• Includes quick connect wiring harness, 25-foot cable, fuse, and aluminum mounts
