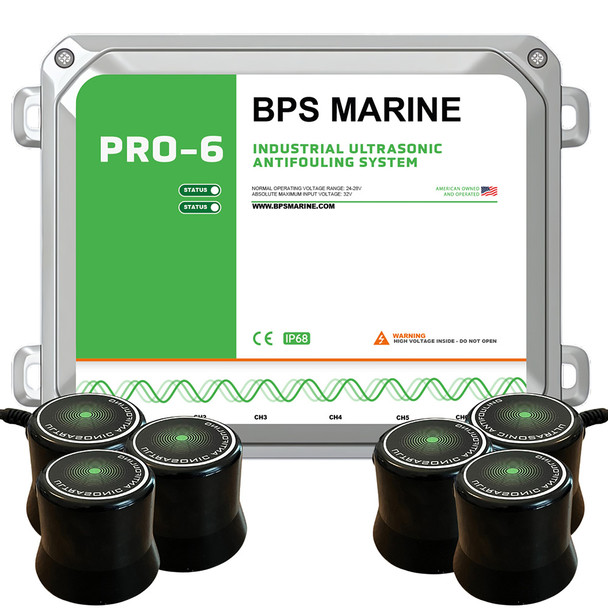

BPS Marine PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC

PRO-6 6-Transducer Ultrasonic Antifouling System - 24VDC

The PRO-6 is a six-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 75ft in length or can be combined with additional systems for larger vessels. The PRO-6 is also the perfect solution for vessels under 60 with pods or stern drives to have one system covering the entire vessel.

The PRO-6 Package Includes:

• 1x PRO-6 Control Module with Integrated Power Cable


• 6x Submersible Ultrasonic Transducers with 15ft of Cable


• 3x Additional 15ft Extension Cables


• 2x Epoxy Kits


• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 24V DC


• Average Power Draw: 1.5Ah


• Transducer Strength: 120W


• Cable Length: 15ft per transducer


• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.


• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.


• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.


• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.


• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.


• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.


• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.


• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.


• Diver Savings: Reduces the need for monthly hull cleaning services.


• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.


• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine PRO-6 is a versatile ultrasonic antifouling system designed to protect hulls, drives, rudders, and stabilizers on vessels up to 75 feet in length. This advanced system features six submerged transducers that emit multi-frequency ultrasonic waves, creating a microscopic resonance barrier that prevents biofouling from adhering to your hull. Suitable for vessels under 60 feet with pods or stern drives, the PRO-6 can also be combined with additional units for larger boats, offering comprehensive protection. Installation is straightforward, with transducers mounted directly on the hull using supplied epoxy, eliminating the need for thru-hulls. Each transducer comes with a 15-foot cable, facilitating flexible placement, and the control module connects easily to your boat's existing house battery with a simple two-wire setup. Once installed, the system operates automatically, requiring no scheduled maintenance, thanks to its intelligent multi-frequency sweeping algorithm that ensures optimal antifouling performance. This eco-friendly technology is completely chemical-free, utilizing ultrasonic waves outside the hearing range of marine mammals and humans, making it safe for the environment and marina regulations. Regular hull cleaning and maintenance costs are significantly reduced, as the ultrasonic waves effectively target biofouling in complex areas such as stern drives, sea strainers, and rudders that are difficult to paint or clean. The system enhances fuel efficiency by maintaining hull cleanliness, resulting in less drag, improved miles per gallon, and higher top speeds. It also extends the lifespan of bottom paint, further lowering maintenance expenses. Designed for ease of use, the PRO-6 runs automatically once installed, providing worry-free antifouling protection that requires no ongoing upkeep. Included with the package are six transducers, extension cables, epoxy kits, and a comprehensive manual, ensuring a seamless installation process. The BPS Marine PRO-6 system offers a sustainable, effective, and maintenance-free solution for keeping your vessel clean and performing at its best, all while respecting marine life and environmental standards.

Features:

• Six ultrasonic transducers for comprehensive hull protection

• Multi-frequency ultrasonic sweep (20kHz-42kHz) for optimal antifouling

• Simple installation without thru-hulls using epoxy mounting

• Integrated control module compatible with standard boat batteries

• Automatic operation with no scheduled maintenance required

• Eco-friendly, chemical-free ultrasonic technology

• Effective in complex areas like stern drives and rudders

• Enhances fuel efficiency by reducing hull drag

• Extends bottom paint lifespan and reduces maintenance costs

• Safe for marine life, outside hearing range of mammals and humans
