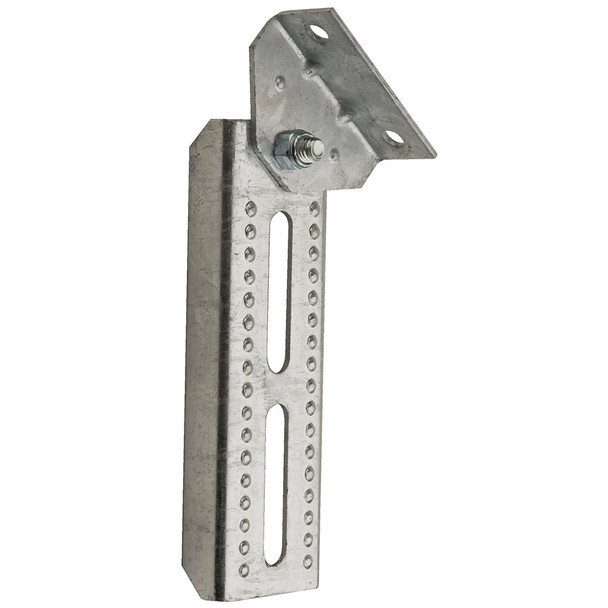

C.E. Smith Swivel Bracket Assembly – 8-inch Support Bracket for Marine Bunk Boards

Swivel Bracket Assembly - 8" Bracket

This Smith adjustable bracket is designed to support bunk boards. Hot dip galvanizing for years of use in the harsh marine environment.

This bracket assembly uses bolster bracket-10100G and swivel bracket-10200G.

Features:

• Bolster bracket: 8" bracket, 11 gauge material, 2-1/2" wide, slots 1/2" wide, swivel hole 1/2" dia., slots 2-3/4"


• Swivel bracket: 11 gauge material, bunk flange 1-3/8" x 3-1/2", bunk flange holes 3/8" dia., swivel flange 2" tall x 3-1/2", swivel flange hole 1/2" dia., hole centers 2-1/2"


• Overall assembly length is 9"

The C.E.. Smith Swivel Bracket Assembly, part number 10000G, is designed to provide reliable support for bunk boards in marine environments. Constructed from durable 11-gauge steel and hot dip galvanized, this assembly is built to withstand harsh conditions and resist corrosion over years of service. The overall length of the assembly measures approximately 9 inches, making it suitable for a variety of marine applications. Its design incorporates a bolster bracket and swivel bracket that work together to offer secure and adjustable support for bunk flanges and boards. The bolster bracket features dimensions of 2-1/2 inches in width with 1/2-inch slots and a swivel hole of 1/2 inch diameter, ensuring a snug fit and easy installation. The swivel bracket includes bunk flanges measuring 1-3/8 inches by 3-1/2 inches with 3/8-inch diameter holes, as well as a swivel flange that is 2 inches tall with a 1/2-inch hole, centered 2-1/2 inches apart for flexible positioning. This assembly is ideal for boat trailers, docks, or other marine structures where dependable support and corrosion resistance are critical. Designed for both durability and ease of installation, the C.E. Smith swivel bracket assembly is a reliable choice for marine equipment that demands strength and longevity.

Features:

• Bolster bracket: 8-inch length, 11 gauge steel, 2-1/2-inch width, 1/2-inch wide slots, 1/2-inch swivel hole, 2-3/4-inch slots

• Swivel bracket: 11 gauge steel, bunk flange measures 1-3/8 inches by 3-1/2 inches with 3/8-inch holes, swivel flange is 2 inches tall with a 1/2-inch hole, hole centers 2-1/2 inches apart

• Overall assembly length: approximately 9 inches

• Hot dip galvanizing for corrosion resistance in marine environments

• Designed for secure support of bunk boards on boat trailers and docks
