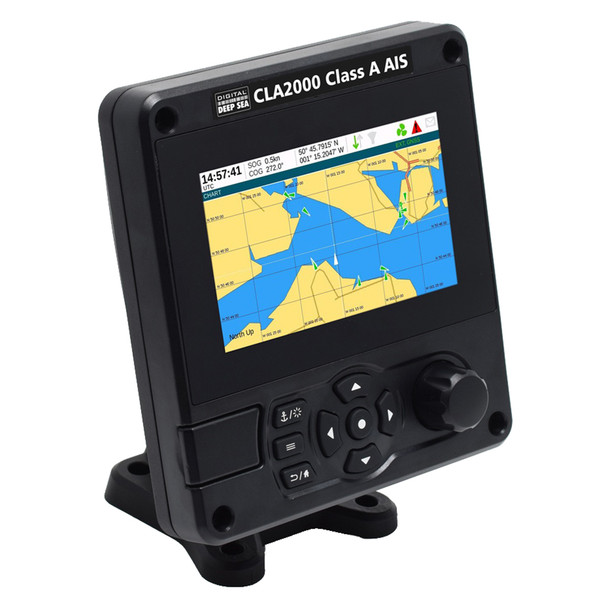

CLA2000 Deep Sea Class A AIS Transponder
Digital Yachts CLA2000 is the ultimate SOLAS and inland waterway globally approved Class A AIS transponder. Water and weather proof to IP67, it has a full integrated 5 hi-res colour display supporting a wide range of functionality including electronic chart navigation with optional C-Map MAX charting and AIS target management.
Proven, superior real world AIS message receive and transmit and message processing performance is delivered by advanced core SDR AIS technology. This state of the art technology ensures you see more targets, more of the time and at maximum range.
The CLA2000 will find applications on SOLAS mandated vessels over 300GRT as well as workboats, rescue services, inland waterways users, RIBs, large yachts and any user wanting premium AIS performance and safety.
The CLA2000 has optimised software for detecting AIS SART and MOB devices with a dedicated icon for this class of AIS. An automatic alarm is activated on detection of an AIS SART beacon activation. The target plot display will also calculate relative bearing of the device for easy visualisation of the target and rescue.
The CLA2000 is fitted with a micro SD card reader located behind a waterproof cover on the front panel. This can support software updates, data logging of AIS and position data to a blank card as well as compatibility with C- Map MAX charting cards for optional detailed back ground charting.
The CLA2000 has an integrated wireless interface for sending AIS and position data to smart phones, tablets, PCs and MACs for use with 3rd party charting and navigation apps. It supports client mode where it can connect to an existing wireless network or AP mode where devices can connect directly to the CLA2000. Up to 5 simultaneous/connected devices are possible.
Features:
- Globally approved Class A AIS transponder
- High resolution, 800 x 480 pixel 5 colour display (MKD) with easy to use, fast user interface
- Bracket or flush mount waterproof to IPX7
- Integrated GPS with external antenna or utilise external NMEA feed (user selectable)
- 3 x NMEA 0183 interface (bi-directional for plotter, ECDIS, radar etc)
- 3 x sensor input ports (eg BlueBoard, external GNSS, gyro etc)
- NMEA 2000 interface
- Built in SD card slot for software updates, AIS data port logging or C-Map MAX mapping capability with optional C-Map data card
- Built in wi-fi for connection to iPads and tablets for wireless navigation
- Sophisticated AIS SART MOB alarm and display capability
- User programmable alarms for CPA and TCPA
- Advanced filtering of targets
- External alarm and remote silence switch capability
The Digital Yacht CLA2000 Deep Sea Class A AIS Transponder is a highly advanced maritime safety device designed for SOLAS and inland waterway vessels worldwide. Its IP67 water and weatherproof housing ensures reliable operation in harsh marine environments. Featuring a high-resolution 5-inch color display with 800 x 480 pixels, the CLA2000 offers an intuitive and fast user interface for easy navigation and target management. This transponder supports electronic chart navigation with the optional C-Map MAX charting system and enables AIS target tracking, making it suitable for vessels over 300GRT, workboats, rescue services, and large yachts seeking premium AIS performance. The integrated GPS with an external antenna or NMEA feed provides precise positioning, while three NMEA 0183 and NMEA 2000 interfaces facilitate seamless integration with plotters, radar, and other navigational equipment. The built-in SD card slot allows for software updates, data logging, and optional detailed charting with C-Map MAX cards. The CLA2000's wireless interface enables connection to smartphones, tablets, and PCs, supporting up to five simultaneous devices in client or access point mode, allowing for flexible wireless navigation and data sharing. Advanced features include optimized detection of AIS SART and MOB devices with dedicated icons and automatic alarms upon detection, aiding rescue operations. User-programmable alarms for CPA and TCPA, along with sophisticated target filtering, enhance situational awareness and safety. External alarm and remote silence switch capabilities provide additional control options. The device's robust construction, including bracket or flush mount options and an IPX7 waterproof rating, ensures durability and versatility for demanding maritime environments.
Features:
- Globally approved Class A AIS transponder for SOLAS and inland waterways
- High-resolution 5-inch color display with 800 x 480 pixels for clear target visualization
- Waterproof housing with IPX7 rating for durability in harsh conditions
- Integrated GPS with external antenna or external NMEA feed support
- Three NMEA 0183 interfaces for seamless integration with navigation systems
- Three sensor input ports for external sensors like GNSS or gyros
- NMEA 2000 interface for network connectivity
- Built-in SD card slot for software updates, data logging, and optional charting
- Wireless connectivity supporting multiple devices for wireless navigation and data sharing
- Advanced AIS SART and MOB detection with dedicated alarms and icons
- User-programmable alarms for CPA and TCPA for enhanced safety
- External alarm and remote silence switch options for operational control
- Flexible mounting options with waterproof construction for marine use
